2012 Scooter VP125 - VP125 (16PB) [020] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

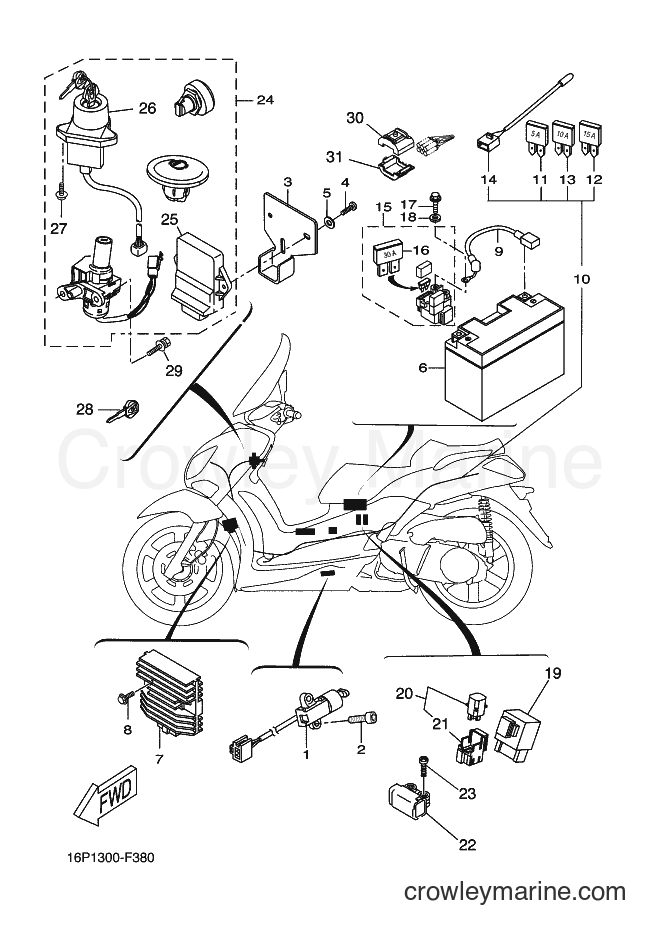

Yamaha Motors VP125 (16PB) [020] - ELECTRICAL 1
Change View:
Side Stand Switch
1
Yamaha Motors
Side Stand Switch3LD-82566-50-00
Required: 1
SWITCH, SIDE STAND
Cross Ship
Leaves in 2-5 days
$64.99
$55.24
You save $9.75
More details
Hexagon Socket Bolt
2
Yamaha Motors
Hexagon Socket Bolt90110-05X01-00
Required: 2
BOLT, HEXAGON SOCKET HEAD
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
3
Required: 1
CASE, ECU
Price unavailable
4
Required: 2
SCREW
Price unavailable
5
Required: 2
WASHER, PLATE
Price unavailable
6
Required: 1
BATTERY ASSY
Price unavailable
Rectifier & Regulator Assembly
7
Yamaha Motors
Rectifier & Regulator Assembly5BN-81960-00-00
Required: 1
RECTIFIER & REGULATOR ASSY
Cross Ship
Leaves in 2-5 days
$223.99
$190.39
You save $33.60
More details
Washer Based Bolt
8
Yamaha Motors
Washer Based Bolt90105-06X02-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
9
Required: 1
WIRE, PLUS LEAD
Price unavailable
10
Required: 1
WIRE HARNESS ASSY
Price unavailable
11
Required: 3
. FUSE (5A)
Price unavailable
12
Required: 3
. FUSE (15A)
Price unavailable
13
Required: 3
. FUSE (10A)
Price unavailable
14
Required: 1
. WIRE, LEAD ( SENSOR TEMP. )
Price unavailable
Starter Relay Assembly
15
Yamaha Motors
Starter Relay Assembly4YR-81940-02-00
Required: 1
STARTER RELAY ASSY
Cross Ship
Leaves in 2-5 days
$152.99
$130.04
You save $22.95
More details
Fuse (30A-Bl)
16
Yamaha Motors
Fuse (30A-Bl)1AE-82151-00-00
Required: 2
. FUSE (30A-BL)
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Hexagon Bolt (ZNN)
17
Yamaha Motors
Hexagon Bolt (ZNN)90101-06X02-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$1.15
$0.98
You save $0.17
More details
WASHER, TOOTH
18
Yamaha Motors
WASHER, TOOTH90205-06X00-00
Required: 2
WASHER, TOOTH
Cross Ship
Leaves in 2-5 days
$0.99
$0.84
You save $0.15
More details
Starter Relay
19
Yamaha Motors
Starter Relay3GD-81950-01-00
Required: 1
RELAY ASSY
Cross Ship
Leaves in 2-5 days
$78.99
$67.14
You save $11.85
More details
Starter Relay
20
Yamaha Motors
Starter Relay5EA-81950-20-00
Required: 3
RELAY ASSY
Cross Ship
Leaves in 2-5 days
$62.99
$53.54
You save $9.45
More details
RELAY HOLDER
21
Yamaha Motors
RELAY HOLDER5EA-81952-00-00
Required: 1
. HOLDER, RELAY
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
SENSOR, LEAN ANGLE
22
Yamaha Motors
SENSOR, LEAN ANGLE5VU-82576-02-00
Required: 1
SENSOR, LEAN ANGLE
Supersedes: 5VU-82576-01-00
Cross Ship
Leaves in 2-5 days
$121.99
$103.69
You save $18.30
More details
23
Required: 2
SCREW, TAPPING
Price unavailable
24
Required: 1
MAIN SW. IMMOBILIZER KIT
Price unavailable
25
Required: 1
. ENGINE CONTROL UNIT ASSY
Price unavailable
26
Required: 1
. IMMOBILIZER. UNIT COMP.
Price unavailable
27
Required: 2
. SCREW
Price unavailable
28
Required: 1
BLANK KEY
Price unavailable
29
Required: 2
BOLT
Price unavailable
30
Required: 1
HOUSING, CONNECTOR 1
Price unavailable
31
Required: 1
HOUSING, CONNECTOR 2
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
