All diagrams for this model

2012 Scooter TZR50 - TZR50 (2AS3) [050] FRONT MASTER CYLINDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

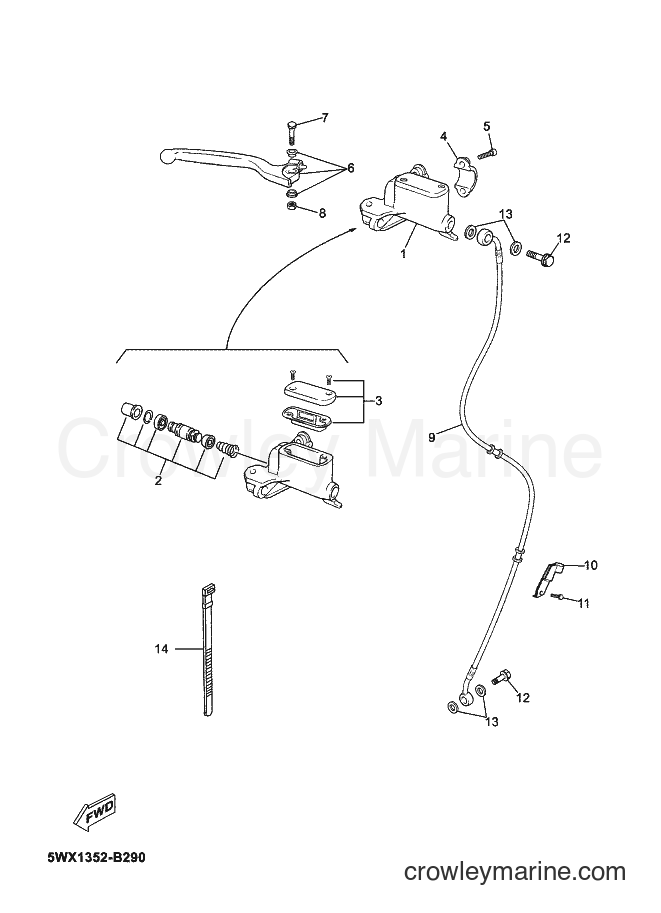

Yamaha Motors TZR50 (2AS3) [050] - FRONT MASTER CYLINDER
Change View:
1
Required: 1
MASTER CYLINDER SUB ASSY
Price unavailable
2
Required: 1
. CYLINDER KIT, MASTER
Price unavailable
3
Required: 1
. RESERVOIR CAP ASSY
Price unavailable
4
Required: 1
BRACKET, MASTER CYLINDER
Price unavailable
Button head bolt
5
Yamaha Motors
Button head bolt9201M-06020-00
Required: 2
BOLT, BUTTON HEAD
Cross Ship
Leaves in 2-5 days
$1.15
$1.19
You save $-0.04
More details
6
Required: 1
LEVER 2
Price unavailable
7
Required: 1
BOLT
Price unavailable
8
Required: 1
NUT, FLANGE
Price unavailable
9
Required: 1
HOSE, BRAKE 1
Price unavailable
10
Required: 1
HOLDER, BRAKE HOSE 2
Price unavailable
11
Required: 1
BOLT, FLANGE
Price unavailable
12
Required: 2
BOLT, UNION
Price unavailable
13
Required: 4
WASHER
Price unavailable
14
Required: 1
BAND, SWITCH CORD
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
