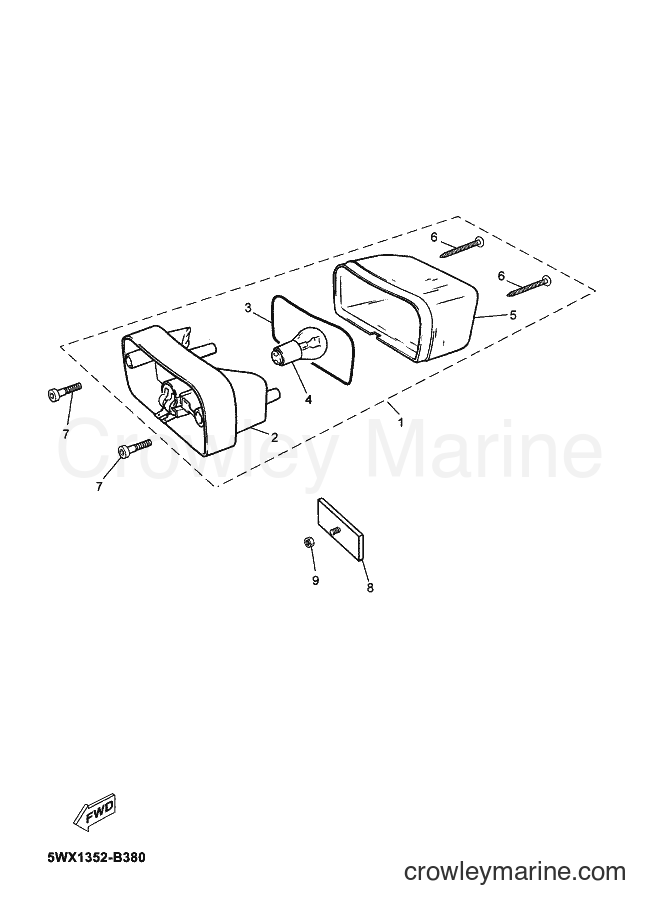

2012 Scooter TZR50 - TZR50 (2AS2) [020] TAILLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors TZR50 (2AS2) [020] - TAILLIGHT
Change View:
1
Required: 1
TAILLIGHT UNIT ASSY
Price unavailable
2
Required: 1
. BASE, TAILLIGHT
Price unavailable
3
Required: 1
. GASKET, TAIL LENS
Price unavailable
4
Required: 1
. BULB (P21/5W)
Price unavailable
5
Required: 1
. LENS, TAILLIGHT
Price unavailable
6
Required: 2
. SCREW, LENS FITTING
Price unavailable
Flange Bolt
7
Yamaha Motors
Flange Bolt9582M-06012-00
Required: 2
BOLT, FLANGE
Supersedes: 9580M-06012-00
Cross Ship
Leaves in 2-5 days
$0.75
$0.64
You save $0.11
More details
8
Required: 1
REAR REFLECTOR ASSY
Price unavailable
9
Required: 1
NUT, FLANGE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
