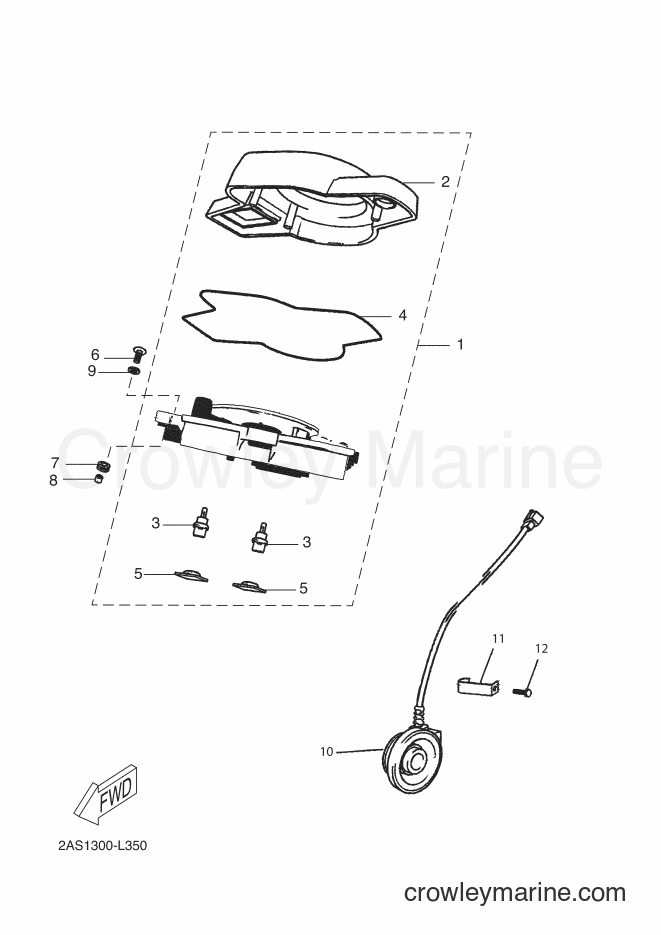

2012 Scooter TZR50 - TZR50 (2AS1) [020] METER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors TZR50 (2AS1) [020] - METER
Change View:
1
Required: 1
METER COMP.
Price unavailable
2
Required: 1
. CASE, UPPER
Price unavailable
3
Required: 2
. BULB
Price unavailable
4
Required: 1
. DAMPER
Price unavailable
5
Required: 2
. PLUG, BLIND
Price unavailable
BOLT
6
Yamaha Motors
BOLT90111-05010-00
Required: 4
BOLT,HEX. SOCKET BUTTON
Cross Ship
Leaves in 2-5 days
$1.95
$1.66
You save $0.29
More details
7
Required: 8
DAMPER
Price unavailable
8
Required: 4
COLLAR
Price unavailable
Plate Washer
9
Yamaha Motors
Plate Washer90201-05725-00
Required: 4
WASHER, PLATE
Supersedes: 90201-05031-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
10
Required: 1
SENSOR, UNIT
Price unavailable
11
Required: 1
HOLDER, CABLE
Price unavailable
12
Required: 1
BOLT, FLANGE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
