2012 Scooter TZR50 - TZR50 (2AS1) [030] FRONT WHEEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

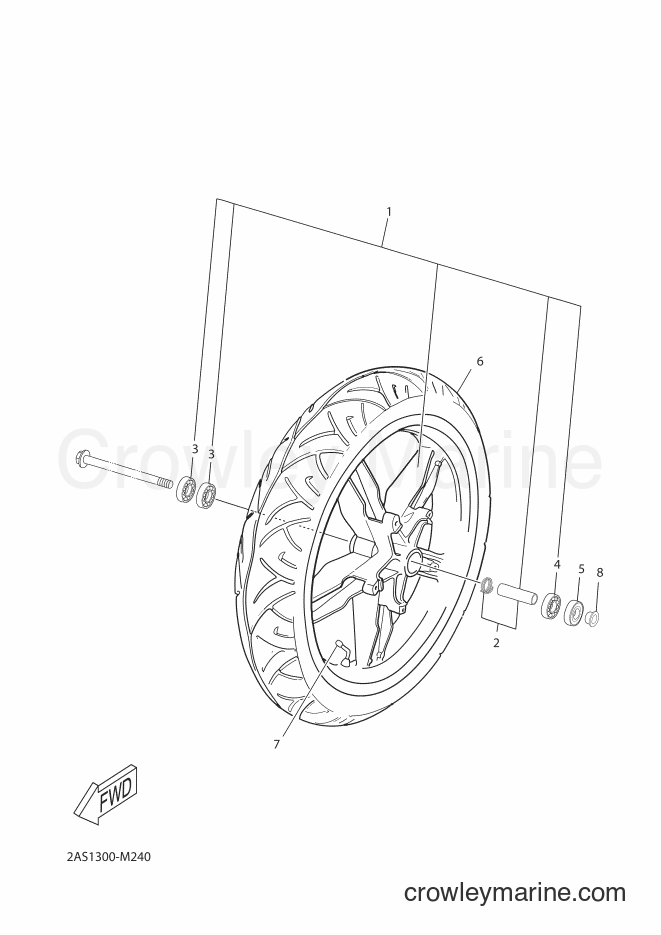

Yamaha Motors TZR50 (2AS1) [030] - FRONT WHEEL
Change View:
1
Required: 1
CAST WHEEL, FRONT
Price unavailable
2
Required: 1
. SPACER, BEARING
Price unavailable
3
Required: 2
. BEARING
Price unavailable
4
Required: 1
. BEARING
Price unavailable
5
Required: 1
OIL SEAL
Price unavailable
6
Required: 1
TIRE (100/80-17 M/C 52H)
Price unavailable
7
Required: 1
AIR VALVE ASSY
Price unavailable
8
Required: 1
COLLAR
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
