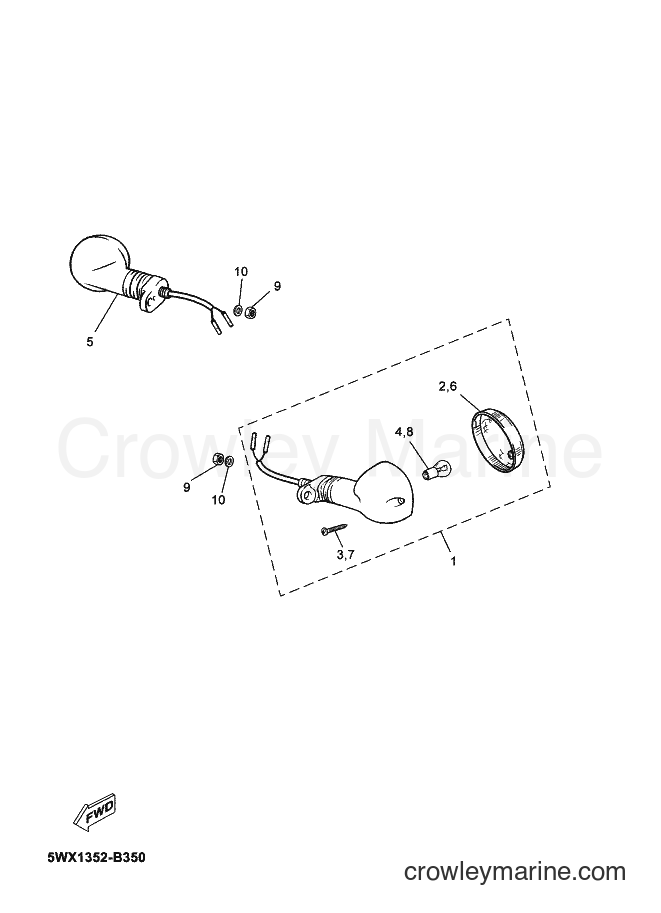

2012 Scooter TZR50 - TZR50 (2AS1) [030] FLASHER LIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors TZR50 (2AS1) [030] - FLASHER LIGHT
Change View:
1
Required: 1
REAR FLASHER LIGHT ASSY 1
Price unavailable
2
Required: 1
. LENS, FLASHER
Price unavailable
3
Required: 1
. SCREW, LENS FITTING
Price unavailable
4
Required: 1
. BULB (12V 10W)
Price unavailable
5
Required: 1
REAR FLASHER LIGHT ASSY 2
Price unavailable
6
Required: 1
. LENS, FLASHER
Price unavailable
7
Required: 1
. SCREW, LENS FITTING
Price unavailable
8
Required: 1
. BULB (12V 10W)
Price unavailable
Socket Bolt
9
Yamaha Motors
Socket Bolt98907-06016-00
Required: 2
SCREW, BIND
Supersedes: 9890M-06016-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Flange Nut
10
Yamaha Motors
Flange Nut95707-06500-00
Required: 2
NUT, FLANGE
Supersedes: 9570N-06500-00
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
