2012 Scooter TZR50 - TZR50 (2AS1) [020] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

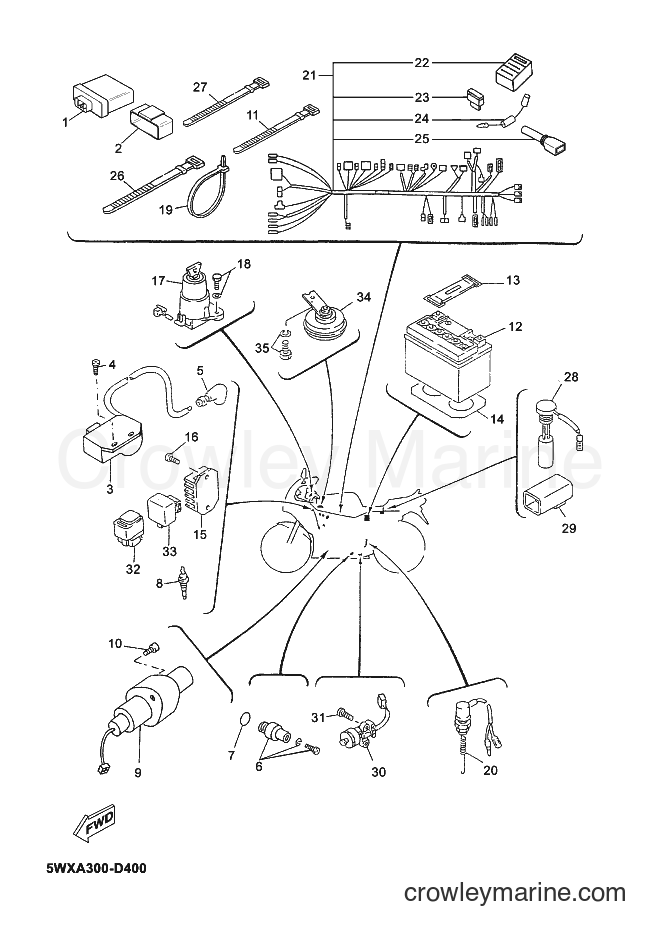

Yamaha Motors TZR50 (2AS1) [020] - ELECTRICAL 1
Change View:
1
Required: 1
C.D.I. UNIT ASSY
Price unavailable
2
Required: 1
BAND
Price unavailable
3
Required: 1
IGNITION COIL ASSY
Price unavailable
4
Required: 2
BOLT
Price unavailable
5
Required: 1
PLUG CAP ASSY
Price unavailable
6
Required: 1
NEUTRAL SWITCH ASSY
Price unavailable
7
Required: 1
GASKET
Price unavailable
8
Required: 1
THERMOSENSOR ASSY
Price unavailable
9
Required: 1
STARTING MOTOR ASSY
Price unavailable
10
Required: 2
BOLT, HEXAGON SOCKET HEAD
Price unavailable
11
Required: 5
CLAMP
Price unavailable
12
Required: 1
BATTERY ASSY
Price unavailable
13
Required: 1
BAND, BATTERY
Price unavailable
14
Required: 1
SEAT, BATTERY
Price unavailable
15
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
16
Required: 1
BOLT, FLANGE
Price unavailable
17
Required: 1
MAIN SWITCH STEERING LOCK
Price unavailable
18
Required: 2
BOLT, HEXAGON SOCKET HEAD
Price unavailable
19
Required: 1
CLAMP
Price unavailable
20
Required: 1
STOP SWITCH ASSY
Price unavailable
21
Required: 1
WIRE HARNESS ASSY
Price unavailable
22
Required: 1
. BAND
Price unavailable
23
Required: 2
. FUSE
Price unavailable
24
Required: 2
. DIODE ASSY
Price unavailable
25
Required: 1
. COVER, CONNECTER
Price unavailable
Switch Cord Band
26
Yamaha Motors
Switch Cord Band437-83936-11-00
Required: 1
BAND, SWITCH CORD
Cross Ship
Leaves in 2-5 days
$5.00
$4.25
You save $0.75
More details
27
Required: 2
CLAMP
Price unavailable
Oil Level Gauge Assembly
28
Yamaha Motors
Oil Level Gauge Assembly53L-85720-10-00
Required: 1
OIL LEVEL GAUGE ASSY
Supersedes: 3VL-H5720-10-00
Cross Ship
Leaves in 2-5 days
$64.99
$55.24
You save $9.75
More details
29
Required: 1
RELAY ASSY
Price unavailable
Side Stand Switch
30
Yamaha Motors
Side Stand Switch3LD-82566-50-00
Required: 1
SWITCH, SIDE STAND
Cross Ship
Leaves in 2-5 days
$64.99
$55.24
You save $9.75
More details
31
Required: 2
BOLT, HEXAGON SOCKET HEAD
Price unavailable
32
Required: 1
RELAY ASSY
Price unavailable
33
Required: 1
FLASHER RELAY ASSY
Price unavailable
34
Required: 1
HORN
Price unavailable
34
Required: 1
HORN
Price unavailable
35
Required: 1
BOLT, WITH WASHER
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
