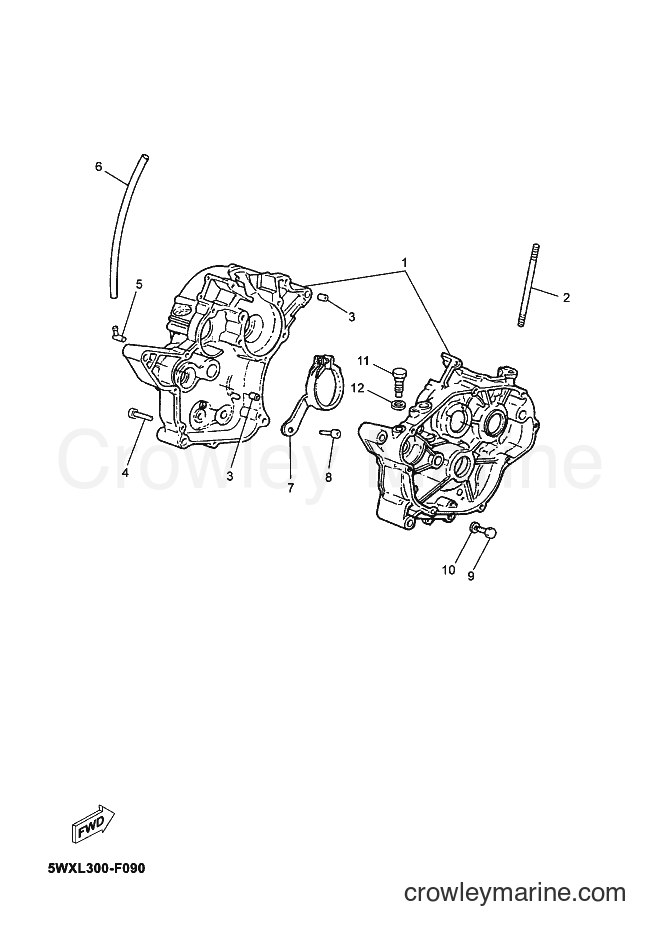

2012 Scooter TZR50 - TZR50 (2AS1) [030] CRANKCASE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors TZR50 (2AS1) [030] - CRANKCASE
Change View:
1
Required: 1
CRANKCASE ASSY
Price unavailable
2
Required: 4
BOLT, STUD
Price unavailable
3
Required: 2
PIN, DOWEL
Price unavailable
4
Required: 13
BOLT, HEXAGON SOCKET HEAD
Price unavailable
5
Required: 1
BREATHER
Price unavailable
Hose
6
Yamaha Motors
Hose90445-05773-00
Required: 1
HOSE (L450)
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
7
Required: 1
HOLDER
Price unavailable
8
Required: 1
BOLT
Price unavailable
9
Required: 1
BOLT
Price unavailable
10
Required: 1
WASHER, PLATE
Price unavailable
11
Required: 1
BOLT
Price unavailable
12
Required: 1
GASKET
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
