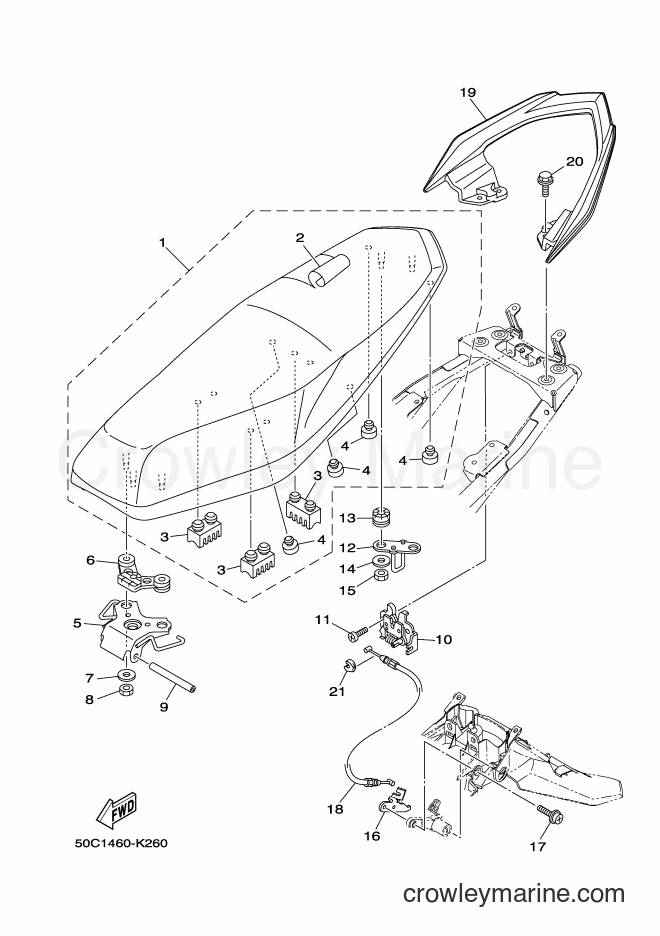

2012 Scooter T135SEC - T135SEC (55S2) [010] SEAT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T135SEC (55S2) [010] - SEAT
Change View:
1
Required: 1
DOUBLE SEAT ASSY
Price unavailable
2
Required: 1
. SEAT COVER COMP.
Price unavailable
3
Required: 3
. DAMPER, SEAT
Price unavailable
SEAT PAD (SX4 T105L)
4
Yamaha Motors
SEAT PAD (SX4 T105L)5BP-F4741-00-00
Required: 4
. PAD, SEAT
Cross Ship
Leaves in 2-5 days
$3.50
$2.98
You save $0.52
More details
5
Required: 1
HINGE, SEAT
Price unavailable
6
Required: 1
GROMMET
Price unavailable
Plain Washer
7
Yamaha Motors
Plain Washer90201-06086-00
Required: 3
WASHER, PLATE
Supersedes: 90201-060A3-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Nut
8
Yamaha Motors
Nut95317-06600-00
Required: 3
NUT
Supersedes: 95307-06600-00
Cross Ship
Leaves in 2-5 days
$3.85
$3.27
You save $0.58
More details
9
Required: 1
PIN, SEAT FITTING
Price unavailable
10
Required: 1
SEAT LOCK ASSY
Price unavailable
Screw
11
Yamaha Motors
Screw98517-06012-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98507-06012-00
Cross Ship
Leaves in 2-5 days
$4.10
$3.60
You save $0.50
More details
12
Required: 1
BRACKET, SEAT
Price unavailable
13
Required: 2
GROMMET
Price unavailable
Plain Washer
14
Yamaha Motors
Plain Washer 90201-06071-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$1.95
$1.66
You save $0.29
More details
Nut
15
Yamaha Motors
Nut95317-06600-00
Required: 2
NUT
Supersedes: 95307-06600-00
Cross Ship
Leaves in 2-5 days
$3.85
$3.27
You save $0.58
More details
16
Required: 1
STAY, LOCK
Price unavailable
Screw with Washer
17
Yamaha Motors
Screw with Washer90159-06060-00
Required: 1
SCREW, WITH WASHER
Supersedes: 90159-06033-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
18
Required: 1
CABLE, SEAT LOCK
Price unavailable
19
Required: 1
HANDLE, SEAT
Price unavailable
Stopper
21
Yamaha Motors
Stopper1S7-F4768-00-00
Required: 1
STOPPER
Cross Ship
Leaves in 2-5 days
$0.85
$0.72
You save $0.13
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
