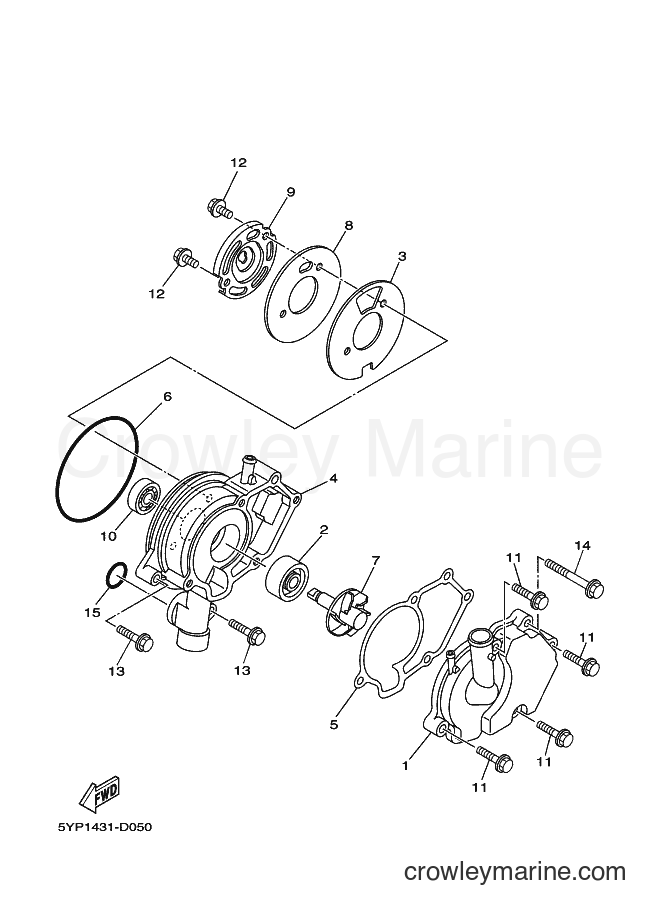

2012 Scooter T135SEC - T135SEC (1S9B) [010] WATER PUMP diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T135SEC (1S9B) [010] - WATER PUMP
Change View:
1
Required: 1
COVER, HOUSING
Price unavailable
2
Required: 1
OIL SEAL
Price unavailable
3
Required: 1
GASKET, HOUSING COVER 2
Price unavailable
4
Required: 1
COVER, CYLINDER HEAD SIDE 3
Price unavailable
5
Required: 1
GASKET, CYLINDER HEAD SIDE
Price unavailable
6
Required: 1
O-RING
Price unavailable
7
Required: 1
IMPELLER SHAFT ASSY
Price unavailable
8
Required: 1
PLATE
Price unavailable
9
Required: 1
PLATE
Price unavailable
10
Required: 1
BEARING
Price unavailable
Flange Bolt (4MY)
12
Yamaha Motors
Flange Bolt (4MY)95027-06012-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$4.20
$3.57
You save $0.63
More details
Small Flange Bolt
14
Yamaha Motors
Small Flange Bolt95027-06050-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$2.75
$2.34
You save $0.41
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
