2012 Scooter T135SEC - T135SEC (1S9B) [010] STARTER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

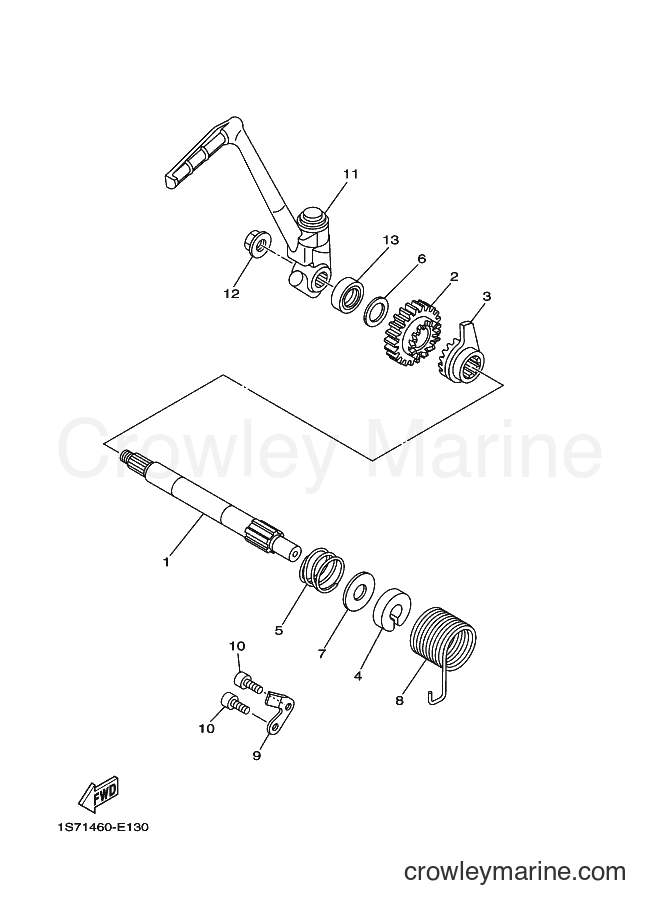

Yamaha Motors T135SEC (1S9B) [010] - STARTER
Change View:
1
Required: 1
AXLE, KICK
Price unavailable
2
Required: 1
GEAR, KICK
Price unavailable
3
Required: 1
WHEEL, RATCHET
Price unavailable
4
Required: 1
GUIDE, SPRING
Price unavailable
5
Required: 1
SPRING
Price unavailable
6
Required: 1
WASHER, PLATE
Price unavailable
7
Required: 1
WASHER 2
Price unavailable
8
Required: 1
SPRING, RETURN
Price unavailable
9
Required: 1
GUIDE, RATCHET WHEEL
Price unavailable
Bolt (4MY)
10
Yamaha Motors
Bolt (4MY)91317-06016-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$1.25
$1.06
You save $0.19
More details
11
Required: 1
KICK CRANK ASSY
Price unavailable
12
Required: 1
NUT
Price unavailable
13
Required: 1
OIL SEAL
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
