2012 Scooter T135SEC - T135SEC (1S9B) [010] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

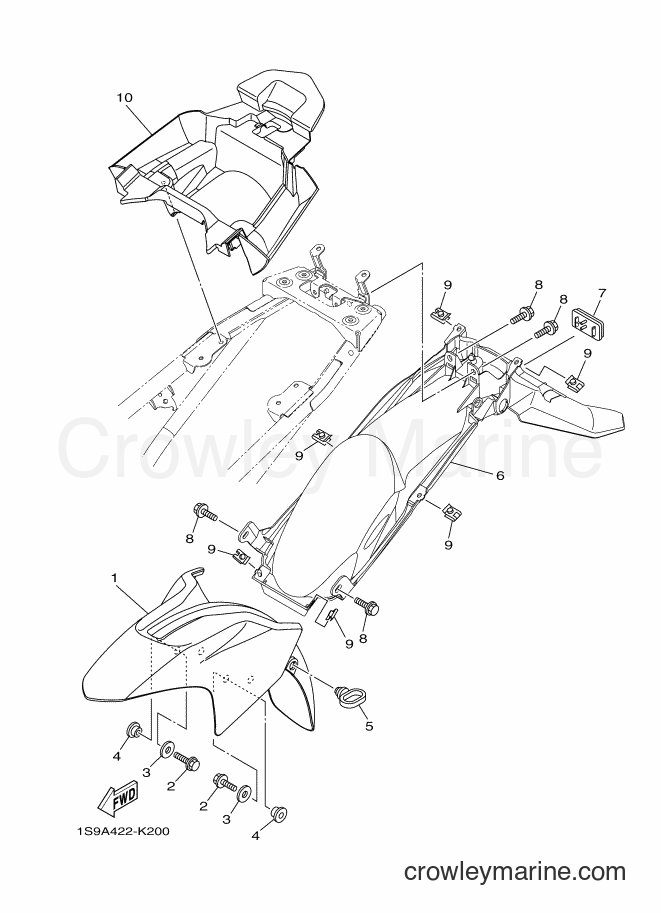

Yamaha Motors T135SEC (1S9B) [010] - FENDER
Change View:
1
Required: 1
FENDER, FRONT
Price unavailable
Flange Bolt
2
Yamaha Motors
Flange Bolt95827-06016-00
Required: 4
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.75
$1.49
You save $0.26
More details
Plate Washer
3
Yamaha Motors
Plate Washer90201-06072-00
Required: 4
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
4
Required: 4
COLLAR
Price unavailable
5
Required: 1
HOLDER, CABLE
Price unavailable
6
Required: 1
FENDER, REAR
Price unavailable
7
Required: 1
REFLECTOR, FRONT 1
Price unavailable
Bolt with Washer
8
Yamaha Motors
Bolt with Washer90119-06242-00
Required: 4
BOLT, WITH WASHER
Supersedes: 90119-06044-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
9
Required: 6
NUT, SPRING
Price unavailable
10
Required: 1
BOX
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
