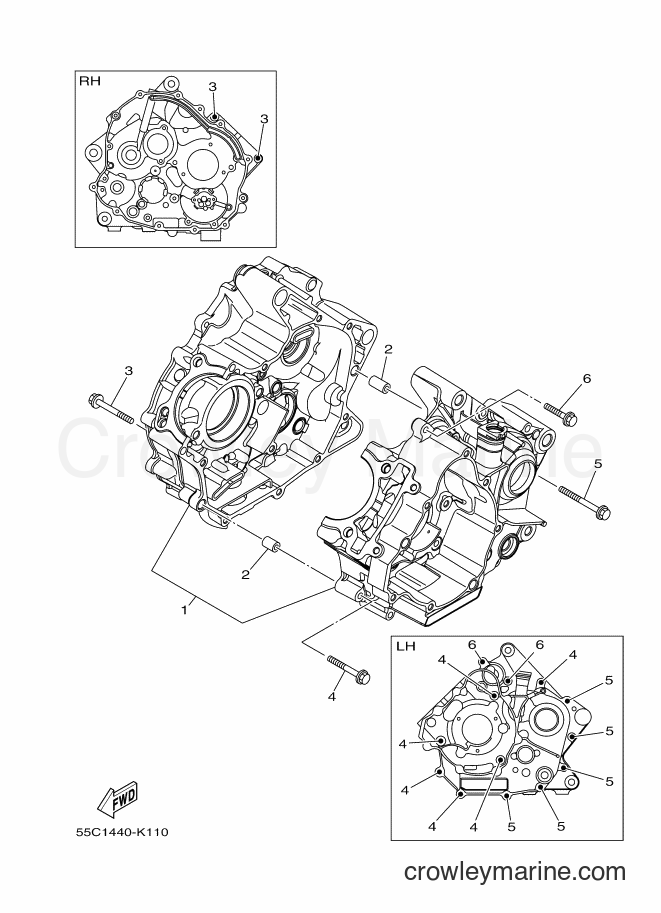

2012 Scooter T135HC - T135HC (55P3) [010] CRANKCASE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T135HC (55P3) [010] - CRANKCASE
Change View:
1
Required: 1
CRANKCASE ASSY
Price unavailable
2
Required: 2
PIN, DOWEL
Price unavailable
Flange Bolt
3
Yamaha Motors
Flange Bolt9502L-06055-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.25
$1.06
You save $0.19
More details
Flange Bolt
4
Yamaha Motors
Flange Bolt95022-06050-00
Required: 6
BOLT, FLANGE
Supersedes: 9502L-06050-00
Cross Ship
Leaves in 2-5 days
$1.80
$1.53
You save $0.27
More details
5
Required: 5
BOLT, FLANGE
Price unavailable
Flange Bolt
6
Yamaha Motors
Flange Bolt9502L-06025-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.60
$0.51
You save $0.09
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
