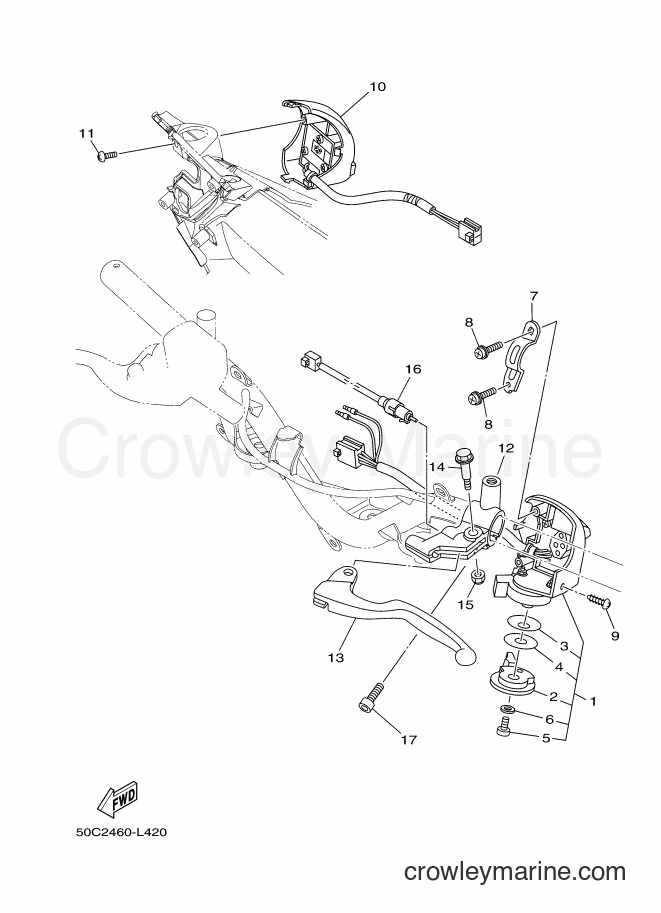

2012 Scooter T135HC - T135HC (50C2) [010] HANDLE SWITCH & LEVER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T135HC (50C2) [010] - HANDLE SWITCH & LEVER
Change View:
1
Required: 1
SWITCH, HANDLE 3
Price unavailable
2
Required: 1
. LEVER, STARTER (BLACK)
Price unavailable
3
Required: 1
. SPRING
Price unavailable
4
Required: 1
. SPACER
Price unavailable
5
Required: 1
. SCREW, PAN HEAD
Price unavailable
Plain Washer
6
Yamaha Motors
Plain Washer92990-06200-00
Required: 1
. WASHER
Supersedes: 9290L-06200-00
Cross Ship
Leaves in 2-5 days
$1.00
$3.60
You save $-2.60
More details
7
Required: 1
BRACKET 1
Price unavailable
8
Required: 2
SCREW,WITH WASHER
Price unavailable
Truss Screw
9
Yamaha Motors
Truss Screw97707-50012-00
Required: 1
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
10
Required: 1
SWITCH, HANDLE 1
Price unavailable
Truss Screw
11
Yamaha Motors
Truss Screw97707-50012-00
Required: 1
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
12
Required: 1
HOLDER, LEVER 1
Price unavailable
13
Required: 1
LEVER 1
Price unavailable
BOLT
14
Yamaha Motors
BOLT90109-06799-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
NUT
15
Yamaha Motors
NUT95617-06100-00
Required: 1
NUT, U
Supersedes: 95607-06100-00
Cross Ship
Leaves in 2-5 days
$2.90
$3.60
You save $-0.70
More details
16
Required: 1
SWITCH
Price unavailable
Bolt
17
Yamaha Motors
Bolt91317-06020-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$2.75
$4.23
You save $-1.48
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
