All diagrams for this model

2012 Scooter T135FI - T135FI (5D66) [010] ELECTRICAL 1 diagram

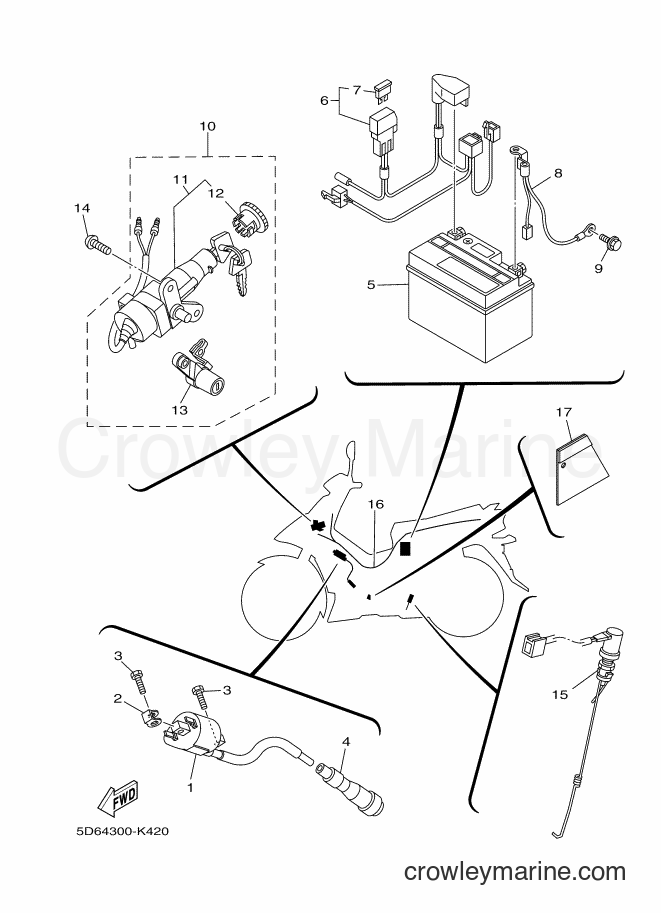

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T135FI (5D66) [010] - ELECTRICAL 1
Change View:
1
Required: 1
IGNITION COIL ASSY
Price unavailable
2
Required: 2
DAMPER, IGNITION COIL
Price unavailable
Hexagon Bolt
3
Yamaha Motors
Hexagon Bolt97017-06016-00
Required: 2
BOLT
Supersedes: 97007-06016-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
4
Required: 1
PLUG CAP ASSY
Price unavailable
5
Required: 1
BATTERY ASSY 3.5A (GS GTZ5S)
Price unavailable
6
Required: 1
FUSE HOLDER ASSY
Price unavailable
7
Required: 1
. FUSE (15A) BLUE
Price unavailable
8
Required: 1
WIRE, MINUS LEAD
Price unavailable
Flange Bolt (4MY)
9
Yamaha Motors
Flange Bolt (4MY)95027-06010-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
10
Required: 1
MAIN SW. STRG. LOCK SUB ASSY
Price unavailable
11
Required: 1
. MAIN SWITCH STEERING LOCK
Price unavailable
12
Required: 1
. . CAP, SWITCH
Price unavailable
13
Required: 1
. ROTOR ASSY
Price unavailable
ROUND HEAD SCREW
14
Yamaha Motors
ROUND HEAD SCREW90149-06309-00
Required: 2
SCREW
Cross Ship
Leaves in 2-5 days
$0.75
$0.64
You save $0.11
More details
15
Required: 1
STOP SWITCH ASSY
Price unavailable
16
Required: 1
WIRE HARNESS ASSY
Price unavailable
17
Required: 1
COVER
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
