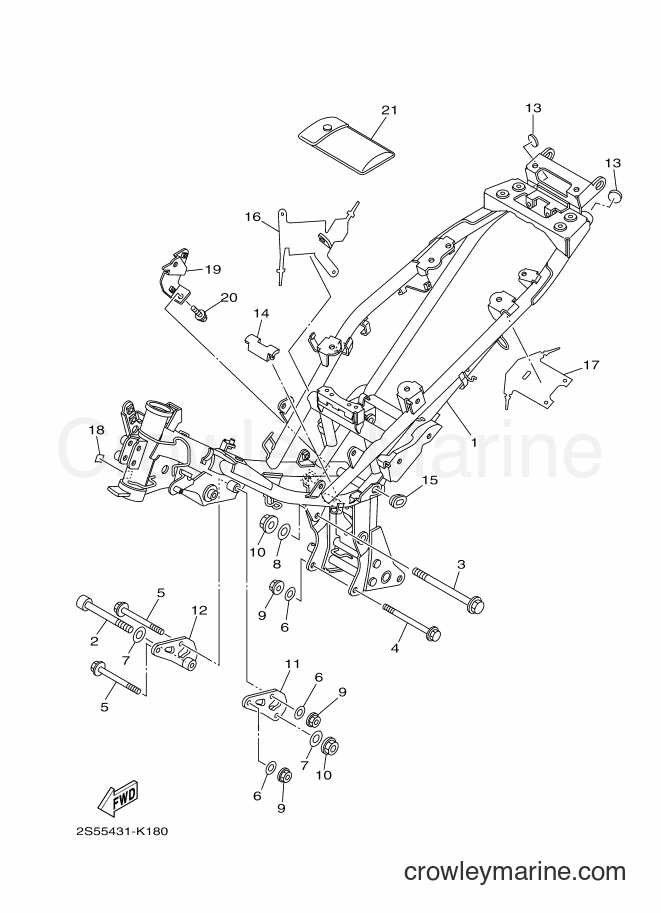

2012 Scooter T135F - T135F (2S58) [010] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T135F (2S58) [010] - FRAME
Change View:
1
Required: 1
FRAME COMP.
Price unavailable
2
Required: 1
BOLT
Price unavailable
Flange Bolt
3
Yamaha Motors
Flange Bolt90105-10079-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$13.49
$11.47
You save $2.02
More details
4
Required: 1
BOLT, FLANGE
Price unavailable
5
Required: 2
BOLT, FLANGE
Price unavailable
Washer (6TC)
6
Yamaha Motors
Washer (6TC)92907-08200-00
Required: 3
WASHER
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Plain Washer
7
Yamaha Motors
Plain Washer90201-101J1-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Plate Washer
8
Yamaha Motors
Plate Washer90201-126L0-00
Required: 1
WASHER, PLATE
Supersedes: 90201-127F4-00
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
9
Required: 3
NUT
Price unavailable
Nut (1S72,5C81)
10
Yamaha Motors
Nut (1S72,5C81)90179-10805-00
Required: 2
NUT
Cross Ship
Leaves in 2-5 days
$2.75
$2.34
You save $0.41
More details
11
Required: 1
STAY, ENGINE 2
Price unavailable
12
Required: 1
STAY, ENGINE 3
Price unavailable
13
Required: 2
COVER 2
Price unavailable
14
Required: 1
DAMPER
Price unavailable
Grommet
15
Yamaha Motors
Grommet90480-01558-00
Required: 1
GROMMET
Supersedes: 90480-01868-00
Cross Ship
Leaves in 2-5 days
$4.65
$3.95
You save $0.70
More details
16
Required: 1
PROTECTOR
Price unavailable
17
Required: 1
PROTECTOR
Price unavailable
18
Required: 1
EMBLEM 1
Price unavailable
19
Required: 1
BRACKET, REGULATOR
Price unavailable
21
Required: 1
TOOL KIT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
