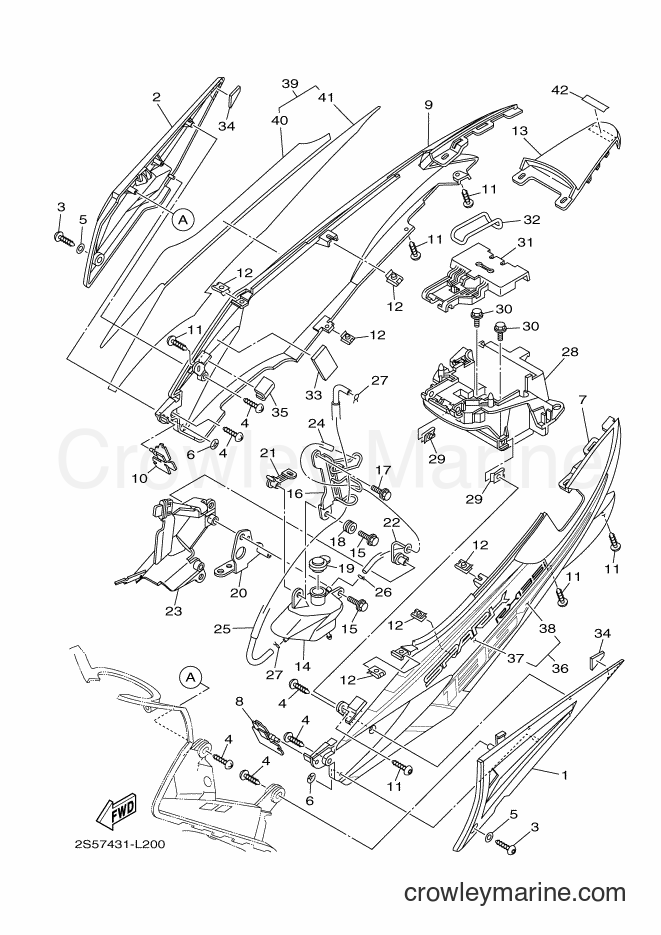

2012 Scooter T135F - T135F (2S58) [010] SIDE COVER diagram
![Yamaha Motors T135F (2S58) [010] - SIDE COVER](https://cdn.crowleymarine.com/yamaha/sC9phUxe.png)
1
Required: 1
COVER, SIDE 1 (1124,WM6)
Price unavailable
2
Required: 1
COVER, SIDE 2 (1124,WM6)
Price unavailable
3
Required: 2
SCREW, ROUND TAPPING
Price unavailable
4
Yamaha Motors
Truss Screw97707-50012-00
Required: 6
SCREW, TRUSS HEAD TAPPING
$3.94
You save $0.69
5
Yamaha Motors
Plate Washer90201-05725-00
Required: 2
WASHER, PLATE
$8.92
You save $1.57
$0.81
You save $0.14
7
Required: 1
COVER, SIDE 3 (0903,SMX)
Price unavailable
8
Required: 1
FLAP
Price unavailable
9
Required: 1
COVER, SIDE 4 (0903,SMX)
Price unavailable
10
Required: 1
FLAP
Price unavailable
11
Required: 6
SCREW, ROUND TAPPING
Price unavailable
-50%
12
Yamaha Motors
Spring Nut90183-05042-00
Required: 6
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
13
Required: 1
COVER, SIDE 5 (0903,SMX)
Price unavailable
14
Required: 1
TANK, RECOVERY
Price unavailable
15
Yamaha Motors
Bolt with Washer90119-06242-00
Required: 2
BOLT, WITH WASHER
Supersedes: 90119-06044-00
$7.22
You save $1.27
16
Required: 1
BRACKET 1
Price unavailable
17
Yamaha Motors
Flange Bolt95817-06020-00
Required: 1
BOLT, FLANGE
Supersedes: 95807-06020-00
In stock
Only 2 remaining
$2.98
You save $0.52
$8.07
You save $1.42
19
Required: 1
CAP
Price unavailable
20
Required: 1
BRACKET 2
Price unavailable
21
Required: 1
BRACKET 3
Price unavailable
22
Required: 1
BOSS, WIRE HOLDER
Price unavailable
23
Required: 1
COVER
Price unavailable
$13.17
You save $2.32
25
Required: 1
PIPE 2
Price unavailable
$9.77
You save $1.72
27
Yamaha Motors
Clip90467-090A2-00
Required: 2
CLIP
Supersedes: 90467-09006-00
$4.04
You save $0.71
28
Required: 1
BOX, BATTERY
Price unavailable
-50%
29
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
30
Yamaha Motors
Bolt with Washer90119-06242-00
Required: 2
BOLT, WITH WASHER
Supersedes: 90119-06044-00
$7.22
You save $1.27
31
Required: 1
COVER, BATTERY
Price unavailable
32
Required: 1
BAND, BATTERY
Price unavailable
33
Required: 1
DAMPER
Price unavailable
34
Required: 2
DAMPER
Price unavailable
35
Required: 1
DAMPER
Price unavailable
36
Required: 1
GRAPHIC SET, SIDE COVER 3
Price unavailable
37
Required: 1
. GRAPHIC 20
Price unavailable
38
Required: 1
. GRAPHIC 22
Price unavailable
39
Required: 1
GRAPHIC SET, SIDE COVER 4
Price unavailable
40
Required: 1
. GRAPHIC 21
Price unavailable
41
Required: 1
. GRAPHIC 23
Price unavailable
42
Required: 1
EMBLEM, YAMAHA
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
