All diagrams for this model

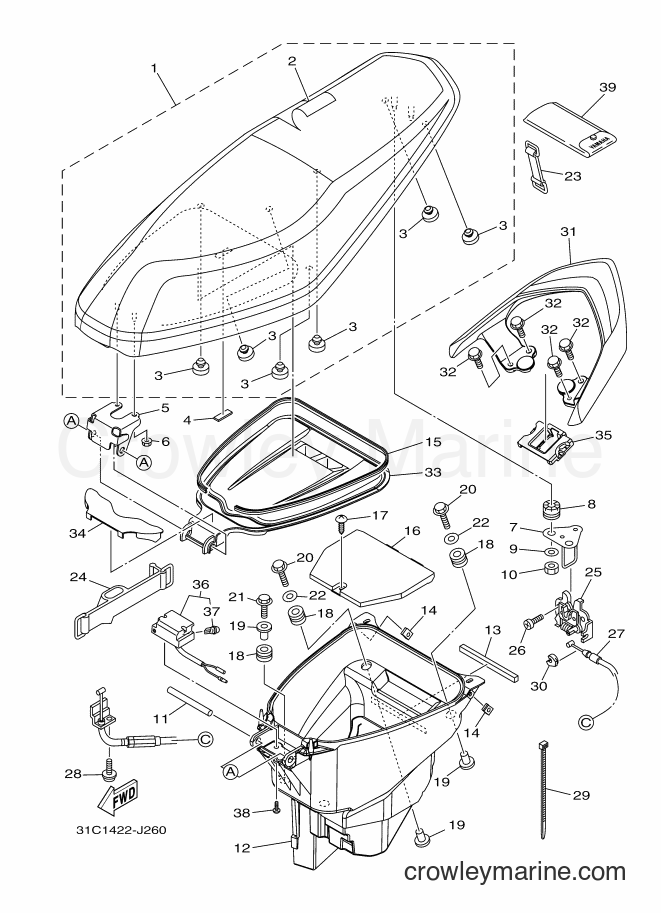

2012 Scooter T115SE - T115SE (31C7) [010] SEAT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T115SE (31C7) [010] - SEAT
Change View:
1
Required: 1
DOUBLE SEAT ASSY
Price unavailable
2
Required: 1
. SEAT COVER COMP.
Price unavailable
3
Required: 6
. PAD, SEAT
Price unavailable
4
Required: 1
DAMPER, PLATE
Price unavailable
5
Required: 1
HINGE, SEAT
Price unavailable
Flange Nut
6
Yamaha Motors
Flange Nut95707-06500-00
Required: 2
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
7
Required: 1
BRACKET, SEAT
Price unavailable
8
Required: 2
GROMMET
Price unavailable
Plain Washer
9
Yamaha Motors
Plain Washer 90201-06071-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$1.95
$1.66
You save $0.29
More details
Nut
10
Yamaha Motors
Nut95317-06600-00
Required: 2
NUT
Supersedes: 95307-06600-00
Cross Ship
Leaves in 2-5 days
$3.85
$3.27
You save $0.58
More details
11
Required: 1
PIN, SEAT FITTING
Price unavailable
12
Required: 1
BOX 1
Price unavailable
12
Required: 1
BOX 1
Price unavailable
13
Required: 1
DAMPER 1
Price unavailable
14
Required: 3
NUT, SPRING
Price unavailable
15
Required: 1
SEAL
Price unavailable
16
Required: 1
LID 1
Price unavailable
18
Required: 4
GROMMET
Price unavailable
19
Required: 4
COLLAR
Price unavailable
Flange Bolt
20
Yamaha Motors
Flange Bolt95817-06030-00
Required: 2
BOLT, FLANGE
Supersedes: 95827-06030-00
Cross Ship
Leaves in 2-5 days
$4.65
$3.95
You save $0.70
More details
Flange Bolt
21
Yamaha Motors
Flange Bolt95811-06025-00
Required: 2
BOLT, FLANGE
Supersedes: 95827-06025-00
Cross Ship
Leaves in 2-5 days
$1.70
$1.44
You save $0.26
More details
Plain Washer
22
Yamaha Motors
Plain Washer90201-06033-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
23
Required: 1
BAND, BATTERY
Price unavailable
24
Required: 1
BAND, BATTERY
Price unavailable
25
Required: 1
SEAT LOCK ASSY
Price unavailable
Screw
26
Yamaha Motors
Screw98517-06012-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98507-06012-00
Cross Ship
Leaves in 2-5 days
$4.10
$3.60
You save $0.50
More details
27
Required: 1
CABLE, SEAT LOCK
Price unavailable
Clamp
29
Yamaha Motors
Clamp90464-50800-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$1.85
$1.57
You save $0.28
More details
30
Required: 1
STOPPER
Price unavailable
31
Required: 1
HANDLE, SEAT
Price unavailable
31
Required: 1
HANDLE, SEAT
Price unavailable
33
Required: 1
PROTECTOR,1
Price unavailable
34
Required: 1
PROTECTOR,2
Price unavailable
35
Required: 1
PROTECTOR, FRAME
Price unavailable
36
Required: 1
LAMP ASSY
Price unavailable
37
Required: 1
. BULB, LED
Price unavailable
39
Required: 1
TOOL KIT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
