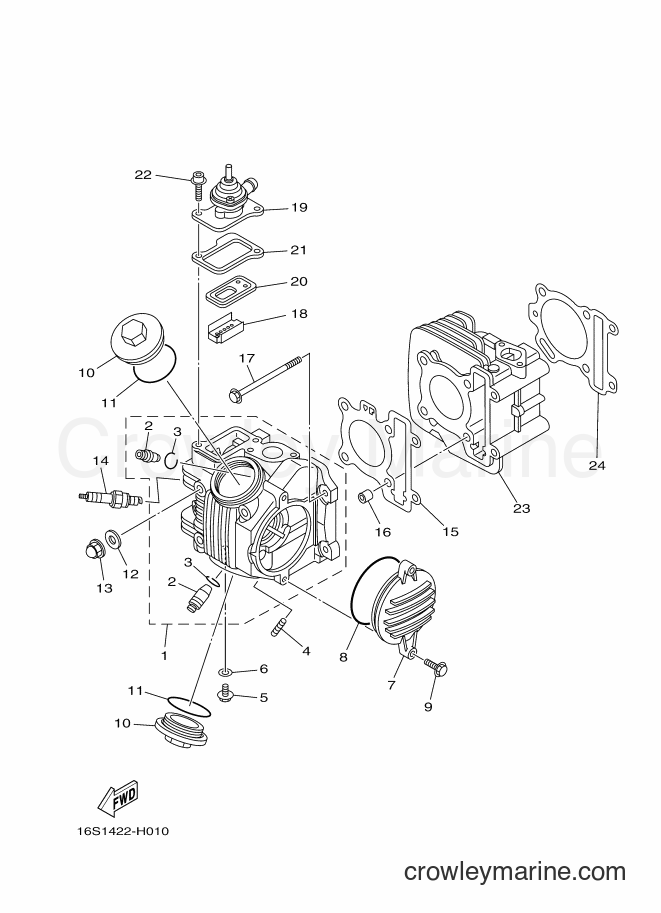

2012 Scooter T115SE - T115SE (31C7) [010] CYLINDER HEAD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T115SE (31C7) [010] - CYLINDER HEAD
Change View:
1
Required: 1
HEAD, CYLINDER 1
Price unavailable
EXHAUST VALVE GUIDE
2
Yamaha Motors
EXHAUST VALVE GUIDE4ST-11134-11-00
Required: 2
. GUIDE, VALVE 2
Cross Ship
Leaves in 2-5 days
$79.99
$67.99
You save $12.00
More details
Circlip (Outer)
3
Yamaha Motors
Circlip (Outer)93440-10153-00
Required: 2
. CIRCLIP
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
BOLT
4
Yamaha Motors
BOLT22F-14651-00-00
Required: 2
BOLT, STUD
Supersedes: 90116-06804-00
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details
Hexagon Screw
5
Yamaha Motors
Hexagon Screw90153-06803-00
Required: 1
SCREW, HEXAGON
Cross Ship
Leaves in 2-5 days
$0.45
$0.38
You save $0.07
More details
7
Required: 1
COVER, CYLINDER HEAD SIDE 3
Price unavailable
O-Ring
8
Yamaha Motors
O-Ring93210-71462-00
Required: 1
O-RING
Cross Ship
Leaves in 2-5 days
$18.49
$15.72
You save $2.77
More details
Bolt Flange (6U1)
9
Yamaha Motors
Bolt Flange (6U1)95027-06020-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.20
$1.02
You save $0.18
More details
10
Required: 2
COVER, CYLINDER HEAD SIDE 2
Price unavailable
Plate Washer
12
Yamaha Motors
Plate Washer90201-080L7-00
Required: 4
WASHER, PLATE
Supersedes: 90201-08609-00
Cross Ship
Leaves in 2-5 days
$4.05
$3.44
You save $0.61
More details
13
Required: 4
NUT, CROWN
Price unavailable
14
Required: 1
PLUG, SPARK (NGK C6HSA)
Price unavailable
15
Required: 1
GASKET, CYLINDER HEAD 1
Price unavailable
16
Required: 2
PIN, DOWEL
Price unavailable
17
Required: 2
BOLT, FLANGE
Price unavailable
18
Required: 1
PLATE
Price unavailable
19
Required: 1
AIR CUT VALVE ASSY
Price unavailable
20
Required: 1
REED VALVE ASSY
Price unavailable
21
Required: 1
JOINT 1
Price unavailable
Hexagon Socket Bolt
22
Yamaha Motors
Hexagon Socket Bolt90110-06069-00
Required: 2
BOLT, HEXAGON SOCKET HEAD
Cross Ship
Leaves in 2-5 days
$2.80
$2.38
You save $0.42
More details
23
Required: 1
CYLINDER
Price unavailable
24
Required: 1
GASKET, CYLINDER
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
