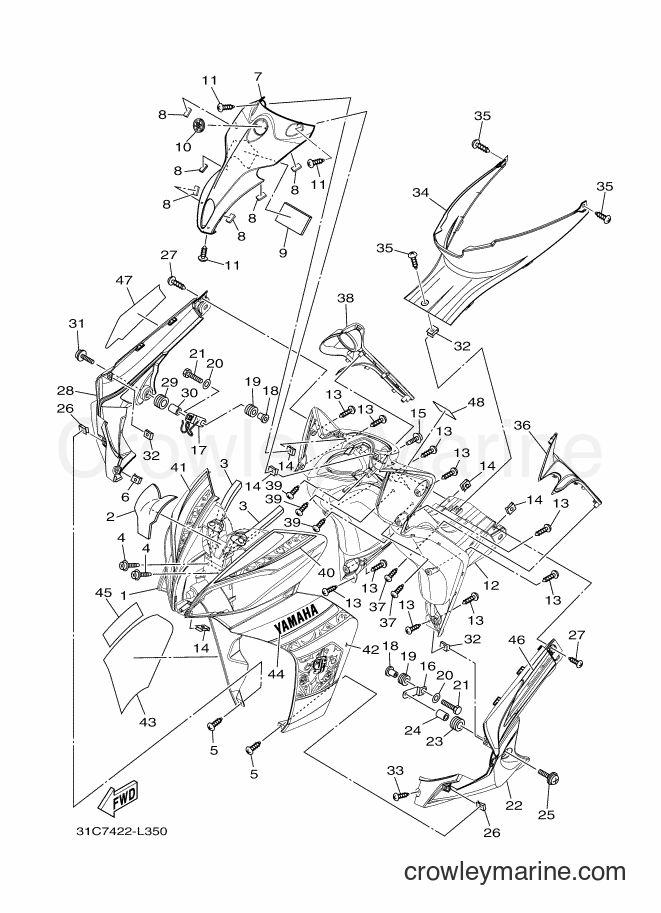

2012 Scooter T115SE - T115SE (31C7) [010] LEG SHIELD diagram
![Yamaha Motors T115SE (31C7) [010] - LEG SHIELD](https://cdn.crowleymarine.com/yamaha/MHNQF0z1.png)
1
Required: 1
LEG SHIELD 1
Price unavailable
2
Required: 1
DAMPER
Price unavailable
3
Required: 2
DAMPER 1
Price unavailable
4
Required: 2
SCREW, WITH WASHER
Price unavailable
5
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
6
Required: 1
NUT, SPRING
Price unavailable
7
Required: 1
PANEL, FRONT
Price unavailable
8
Required: 6
SEAL
Price unavailable
9
Required: 1
DAMPER, PLATE
Price unavailable
10
Required: 1
EMBLEM, 1
Price unavailable
11
Yamaha Motors
Truss Screw97707-50012-00
Required: 3
SCREW, TRUSS HEAD TAPPING
$3.94
You save $0.69
12
Required: 1
LEG SHIELD 2
Price unavailable
13
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 10
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
14
Required: 5
NUT, SPRING
Price unavailable
15
Required: 1
SCREW, WITH WASHER
Price unavailable
16
Required: 1
STAY 1
Price unavailable
17
Required: 1
STAY 2
Price unavailable
18
Required: 2
COLLAR
Price unavailable
19
Required: 2
GROMMET
Price unavailable
20
Yamaha Motors
Plate Washer90201-06557-00
Required: 2
WASHER, PLATE
$3.02
You save $0.53
$3.45
You save $0.61
22
Required: 1
COVER, UNDER
Price unavailable
23
Yamaha Motors
Grommet (3AK)90480-18495-00
Required: 1
GROMMET
Supersedes: 90480-18418-00
$8.92
You save $1.57
24
Required: 1
COLLAR
Price unavailable
25
Yamaha Motors
Screw with Washer90159-06067-00
Required: 1
SCREW, WITH WASHER
$8.92
You save $1.57
26
Required: 2
NUT, SPRING
Price unavailable
27
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
28
Required: 1
COVER, UNDER 2
Price unavailable
29
Yamaha Motors
Grommet (3AK)90480-18495-00
Required: 1
GROMMET
Supersedes: 90480-18418-00
$8.92
You save $1.57
30
Required: 1
COLLAR
Price unavailable
31
Yamaha Motors
Screw with Washer90159-06067-00
Required: 1
SCREW, WITH WASHER
$8.92
You save $1.57
32
Required: 3
NUT, SPRING
Price unavailable
33
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 1
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
34
Required: 1
COVER 2
Price unavailable
35
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 3
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
36
Required: 1
CAP
Price unavailable
37
Yamaha Motors
Truss Screw97707-50010-00
Required: 4
SCREW, TAPPING
$0.34
You save $0.06
38
Required: 1
CAP 2
Price unavailable
39
Yamaha Motors
Truss Screw97707-50010-00
Required: 3
SCREW, TAPPING
$0.34
You save $0.06
40
Required: 1
GRAPHIC 29
Price unavailable
41
Required: 1
GRAPHIC 30
Price unavailable
42
Required: 1
GRAPHIC 31
Price unavailable
43
Required: 1
GRAPHIC 32
Price unavailable
44
Yamaha Motors
99246-00120-0099236-00120-00
Required: 1
EMBLEM, YAMAHA
$3.36
You save $0.59
45
Yamaha Motors
99246-00120-0099236-00120-00
Required: 1
EMBLEM, YAMAHA
$3.36
You save $0.59
46
Required: 1
GRAPHIC, UNDER COVER 5
Price unavailable
47
Required: 1
GRAPHIC, UNDER COVER 6
Price unavailable
48
Required: 1
LABEL, WARNING
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
