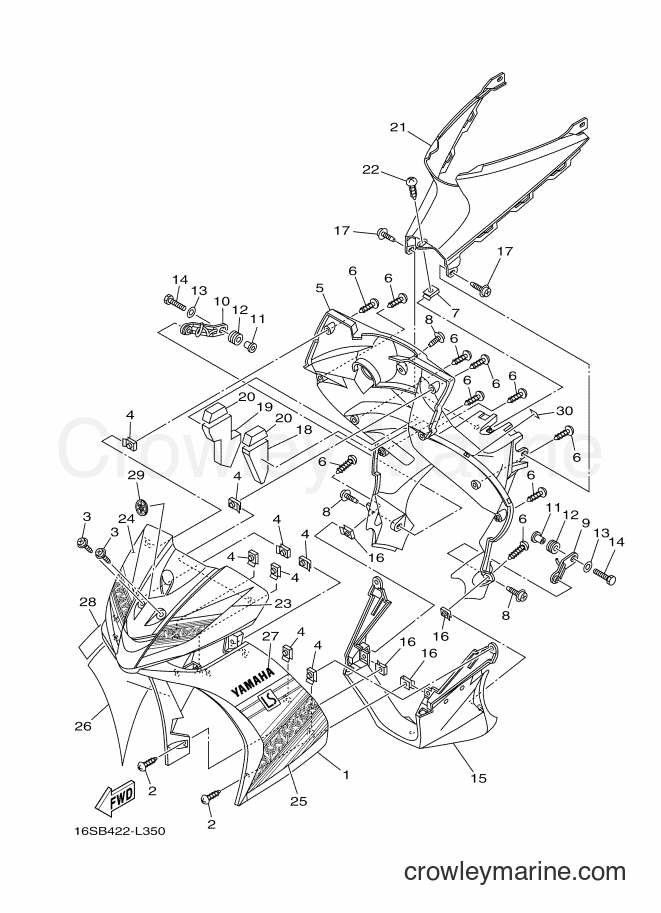

2012 Scooter T115LE - T115LE (16SC) [010] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T115LE (16SC) [010] - LEG SHIELD
Change View:
1
Required: 1
LEG SHIELD 1
Price unavailable
3
Required: 2
SCREW, WITH WASHER
Price unavailable
4
Required: 8
NUT, SPRING
Price unavailable
5
Required: 1
LEG SHIELD 2
Price unavailable
7
Required: 1
NUT, SPRING
Price unavailable
8
Required: 3
SCREW, WITH WASHER
Price unavailable
9
Required: 1
STAY 1
Price unavailable
10
Required: 1
STAY 2
Price unavailable
11
Required: 2
COLLAR
Price unavailable
12
Required: 2
GROMMET
Price unavailable
Plate Washer
13
Yamaha Motors
Plate Washer90201-06557-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
Hexagon Bolt
14
Yamaha Motors
Hexagon Bolt97017-06020-00
Required: 2
BOLT
Supersedes: 97007-06020-00
Cross Ship
Leaves in 2-5 days
$4.06
$3.45
You save $0.61
More details
15
Required: 1
COVER, UNDER
Price unavailable
16
Required: 4
NUT, SPRING
Price unavailable
17
Required: 2
SCREW, WITH WASHER
Price unavailable
18
Required: 1
DAMPER 1
Price unavailable
19
Required: 1
DAMPER 2
Price unavailable
20
Required: 2
DAMPER 4
Price unavailable
21
Required: 1
COVER 2
Price unavailable
23
Required: 1
GRAPHIC, 23
Price unavailable
24
Required: 1
GRAPHIC, 24
Price unavailable
25
Required: 1
GRAPHIC, 25
Price unavailable
26
Required: 1
GRAPHIC, 26
Price unavailable
99246-00100-00
27
Yamaha Motors
99246-00100-0099236-00100-00
Required: 1
EMBLEM, YAMAHA
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
99246-00100-00
28
Yamaha Motors
99246-00100-0099236-00100-00
Required: 1
EMBLEM, YAMAHA
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
29
Required: 1
TUNING FORK MARK
Price unavailable
30
Required: 1
LABEL, CAUTION
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
