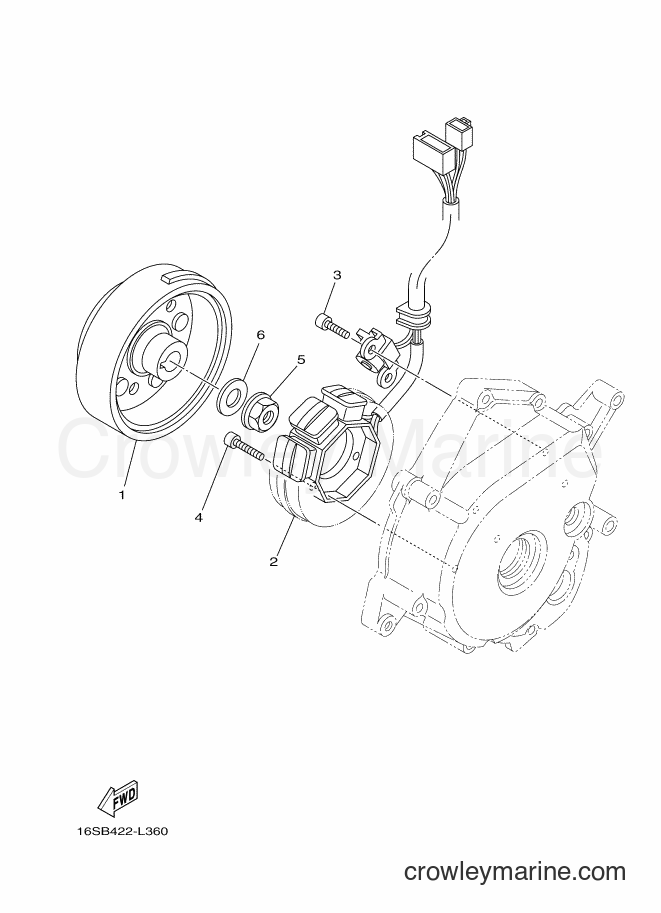

2012 Scooter T115LSE - T115LSE (16SB) [010] GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T115LSE (16SB) [010] - GENERATOR
Change View:
1
Required: 1
ROTOR ASSY
Price unavailable
2
Required: 1
STATOR ASSY
Price unavailable
Bolt (4MY)
3
Yamaha Motors
Bolt (4MY)91317-06016-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$1.25
$1.06
You save $0.19
More details
Nut (3GG)
5
Yamaha Motors
Nut (3GG)90179-12588-00
Required: 1
NUT, FLANGE
Supersedes: 95707-12500-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Plate Washer
6
Yamaha Motors
Plate Washer90201-122H1-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
