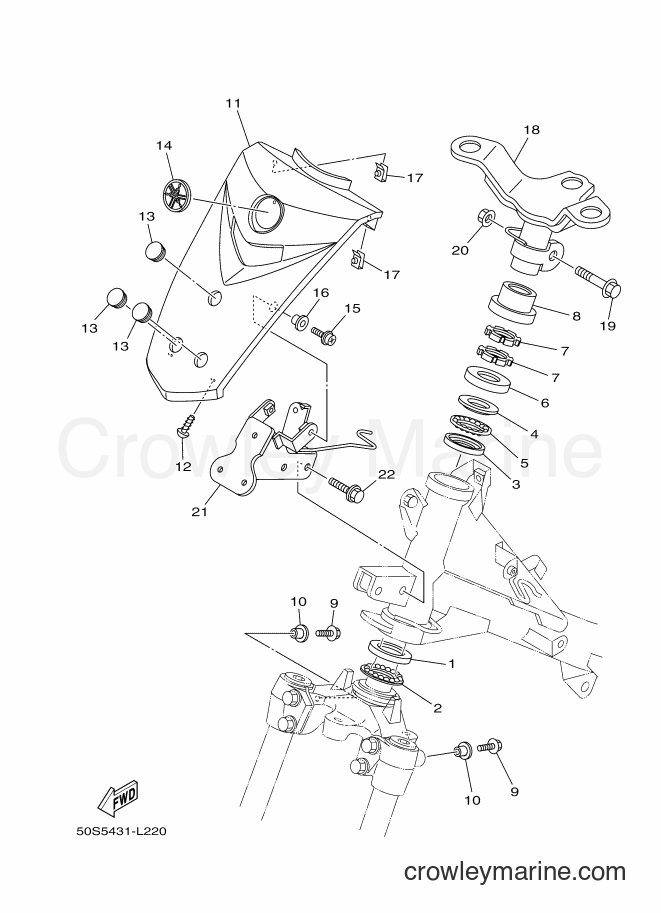

2012 Scooter T110LSE - T110LSE (50S6) [010] STEERING 2 diagram
![Yamaha Motors T110LSE (50S6) [010] - STEERING 2](https://cdn.crowleymarine.com/yamaha/baP0Vd94.png)
1
Required: 1
RACE, BALL 2
Price unavailable
2
Required: 1
RETAINER, BALL BEARING
Price unavailable
3
Required: 1
RACE, BALL 2
Price unavailable
4
Required: 1
RACE, BALL 1
Price unavailable
5
Required: 1
RETAINER, BALL BEARING
Price unavailable
6
Required: 1
COVER, BALL RACE 2
Price unavailable
7
Yamaha Motors
Nut90179-25004-00
Required: 2
NUT
Supersedes: 90179-25033-00
$22.94
You save $4.05
8
Required: 1
COVER, BALL RACE 1
Price unavailable
9
Yamaha Motors
Washer Based Bolt90105-06696-00
Required: 2
BOLT, FLANGE
Supersedes: 95027-06016-00
$8.92
You save $1.57
$8.92
You save $1.57
11
Required: 1
PANEL, FRONT (0918,DRMK)
Price unavailable
12
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TRUSS HEAD TAPPING
$3.94
You save $0.69
13
Required: 3
PLUG
Price unavailable
14
Required: 1
EMBLEM
Price unavailable
15
Required: 2
SCREW, WITH WASHER
Price unavailable
$8.92
You save $1.57
-50%
17
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
18
Required: 1
BRACKET, HANDLE
Price unavailable
$8.07
You save $1.42
20
Required: 1
NUT, SELF-LOCKING
Price unavailable
21
Required: 1
STAY
Price unavailable
$8.07
You save $1.42
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
