2012 Scooter T110L - T110L (50P3) [010] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

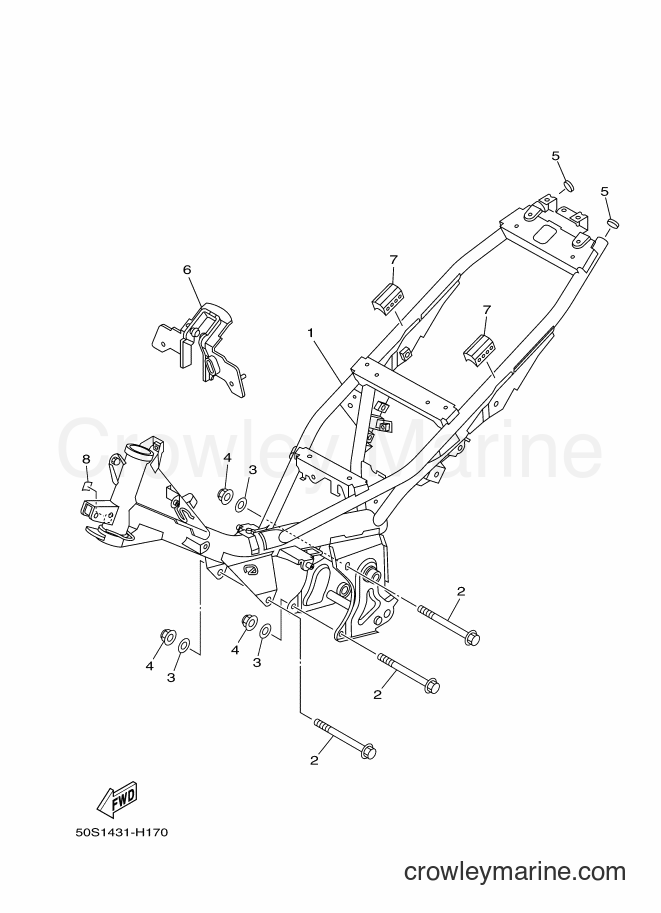

Yamaha Motors T110L (50P3) [010] - FRAME
Change View:
1
Required: 1
FRAME COMP.
Price unavailable
Flange Bolt (4EM)
2
Yamaha Motors
Flange Bolt (4EM)95817-08120-00
Required: 3
BOLT, FLANGE
Supersedes: 95812-08120-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
Plain Washer
3
Yamaha Motors
Plain Washer90201-086P8-00
Required: 3
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
Self Locking Nut
4
Yamaha Motors
Self Locking Nut90185-08169-00
Required: 3
NUT, SELF-LOCKING
Supersedes: 95607-08200-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
5
Required: 2
COVER 2
Price unavailable
6
Required: 1
COVER 4
Price unavailable
7
Required: 2
DAMPER 2
Price unavailable
8
Required: 1
EMBLEM 1
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
