All diagrams for this model

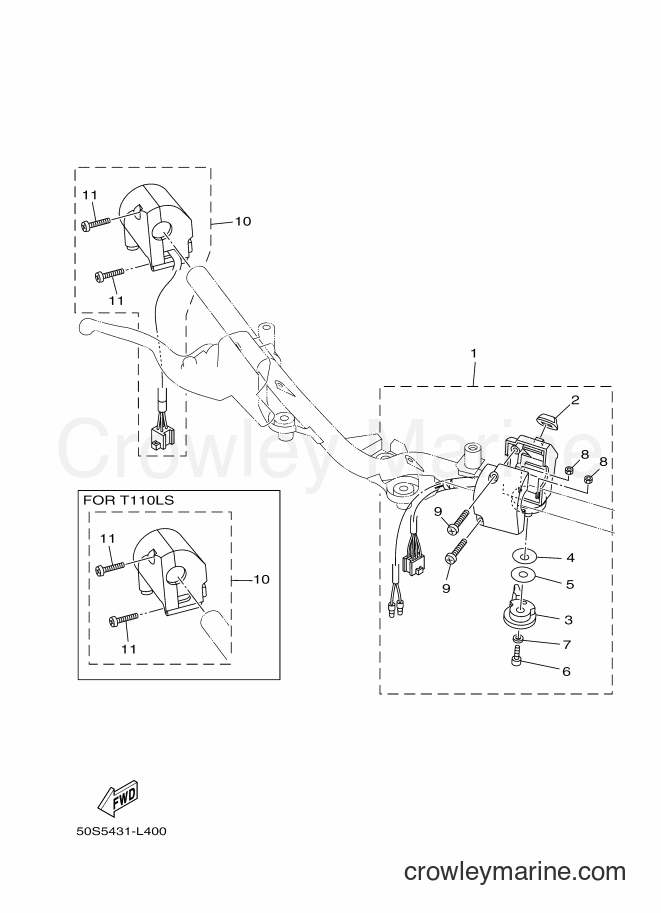

2012 Scooter T110LSE - T110LSE (50S6) [010] HANDLE SWITCH & LEVER 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T110LSE (50S6) [010] - HANDLE SWITCH & LEVER 2
Change View:
1
Required: 1
SWITCH, HANDLE 3
Price unavailable
2
Required: 1
. KNOB 1
Price unavailable
3
Required: 1
. LEVER, STARTER (BLACK)
Price unavailable
4
Required: 1
. SPRING
Price unavailable
5
Required: 1
. SPACER
Price unavailable
6
Required: 1
. SCREW, PAN HEAD
Price unavailable
Plain Washer
7
Yamaha Motors
Plain Washer92990-06200-00
Required: 1
. WASHER
Supersedes: 9290L-06200-00
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
8
Required: 2
. NUT
Price unavailable
9
Required: 2
. SCREW, PAN HEAD
Price unavailable
10
Required: 1
SWITCH, HANDLE 1
Price unavailable
10
Required: 1
CAP, GRIP
Price unavailable
11
Required: 2
. SCREW, PAN HEAD
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
