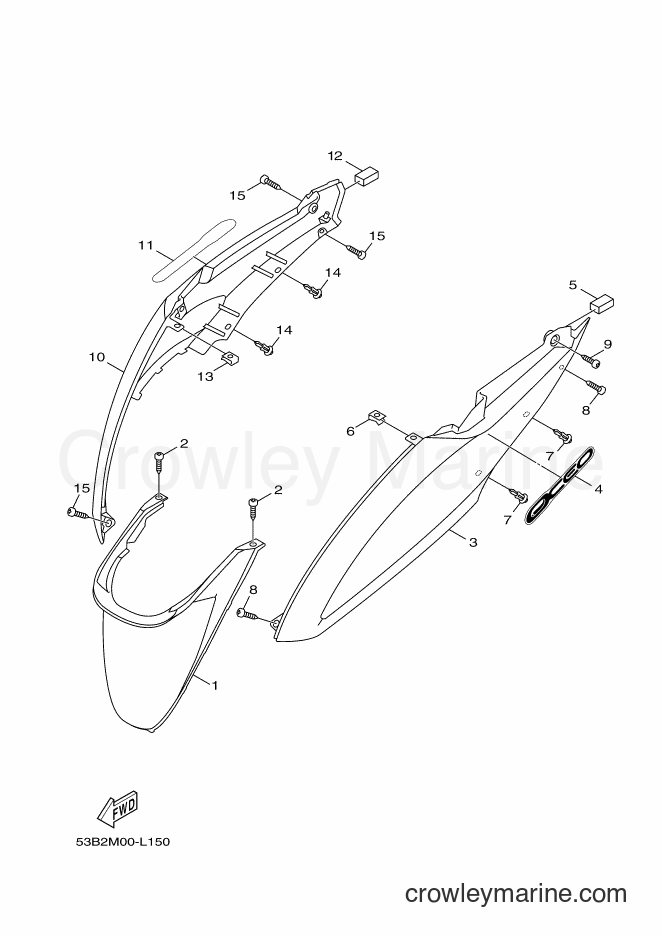

2012 Scooter HW125 - HW125 (53B2) [010] SIDE COVER diagram
![Yamaha Motors HW125 (53B2) [010] - SIDE COVER](https://cdn.crowleymarine.com/yamaha/45SWqkzc.png)
1
Required: 1
COVER, SIDE 1
Price unavailable
2
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
3
Required: 1
COVER, SIDE 2
Price unavailable
4
Required: 1
EMBLEM 3D
Price unavailable
5
Required: 1
DAMPER, PLATE
Price unavailable
-50%
6
Yamaha Motors
Spring Nut90183-05042-00
Required: 1
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
$0.72
You save $-0.12
8
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
9
Yamaha Motors
Tapping Screw90169-05001-00
Required: 1
TAPPING SCREW
$0.89
You save $0.16
10
Required: 1
COVER, SIDE 3
Price unavailable
11
Required: 1
EMBLEM 3D
Price unavailable
12
Required: 1
DAMPER, PLATE
Price unavailable
-50%
13
Yamaha Motors
Spring Nut90183-05042-00
Required: 1
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
$0.72
You save $-0.12
15
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 3
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
