All diagrams for this model

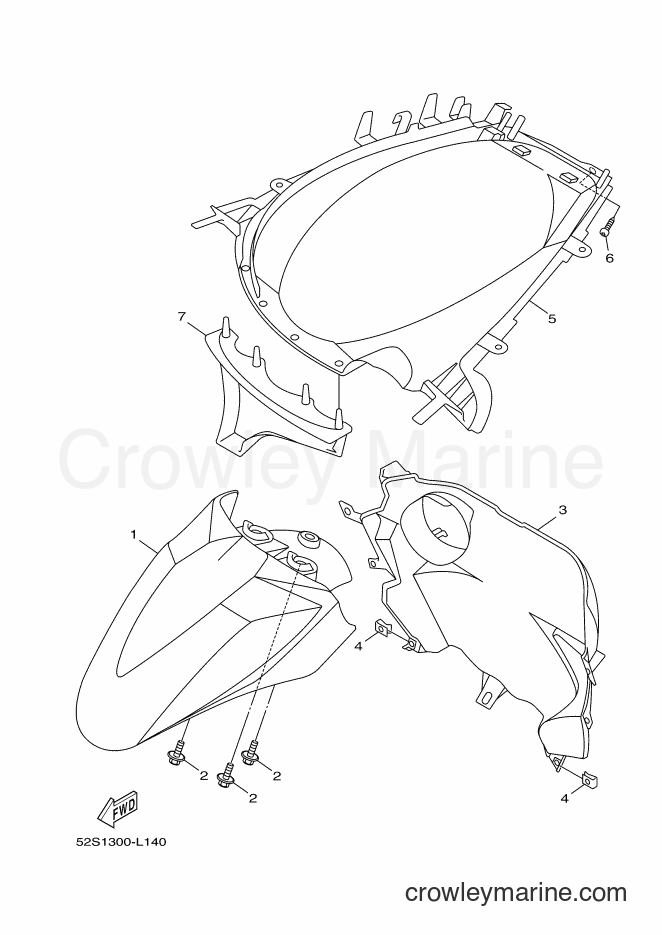

2012 Scooter HW125 - HW125 (53B2) [010] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors HW125 (53B2) [010] - FENDER
Change View:
1
Required: 1
FENDER, FRONT
Price unavailable
2
Required: 3
BOLT, WITH WASHER
Price unavailable
3
Required: 1
FENDER, INNER
Price unavailable
5
Required: 1
GUARD, MUD
Price unavailable
Truss Screw
6
Yamaha Motors
Truss Screw97707-50012-00
Required: 1
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
7
Required: 1
FLAP
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
