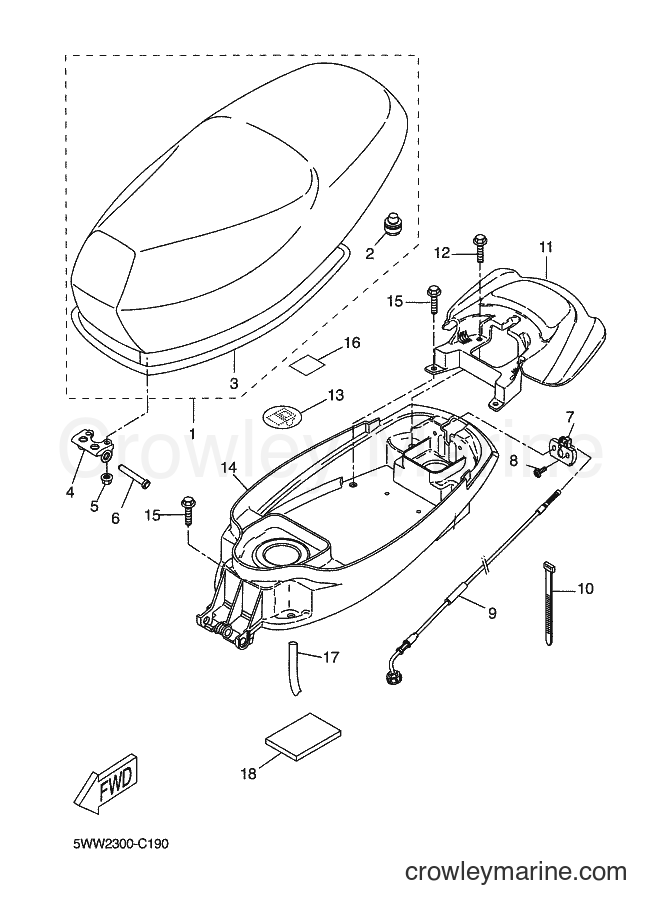

2012 Scooter CW50LN - CW50LN (1WP1) [020] SEAT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors CW50LN (1WP1) [020] - SEAT
Change View:
1
Required: 1
SEMI-DOUBLE SEAT
Price unavailable
1
Required: 1
SEMI-DOUBLE SEAT
Price unavailable
Seat Pad
2
Yamaha Motors
Seat Pad3VL-F4741-00-00
Required: 4
. PAD, SEAT
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
3
Required: 1
. SEAL
Price unavailable
4
Required: 1
HINGE, SEAT
Price unavailable
Nut
5
Yamaha Motors
Nut90179-06X00-00
Required: 2
NUT
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details
6
Required: 1
PIN
Price unavailable
7
Required: 1
SEAT LOCK ASSY
Price unavailable
8
Required: 2
BOLT,HEX. SOCKET BUTTON
Price unavailable
9
Required: 1
CABLE, SEAT LOCK
Price unavailable
Switch Cord Band
10
Yamaha Motors
Switch Cord Band4KH-H3936-01-00
Required: 2
BAND, SWITCH CORD
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
11
Required: 1
HANDLE, SEAT
Price unavailable
Washer Based Bolt
12
Yamaha Motors
Washer Based Bolt90105-06X02-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
13
Required: 1
LABEL, CAUTION
Price unavailable
14
Required: 1
BOX 1
Price unavailable
15
Required: 4
BOLT, FLANGE
Price unavailable
16
Required: 1
LABEL 1
Price unavailable
Overflow Pipe
17
Yamaha Motors
Overflow Pipe4VU-F4318-00-00
Required: 1
PIPE, OVERFLOW
Cross Ship
Leaves in 2-5 days
$19.99
$16.99
You save $3.00
More details
18
Required: 1
MANUAL,OWNER'S 2
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
