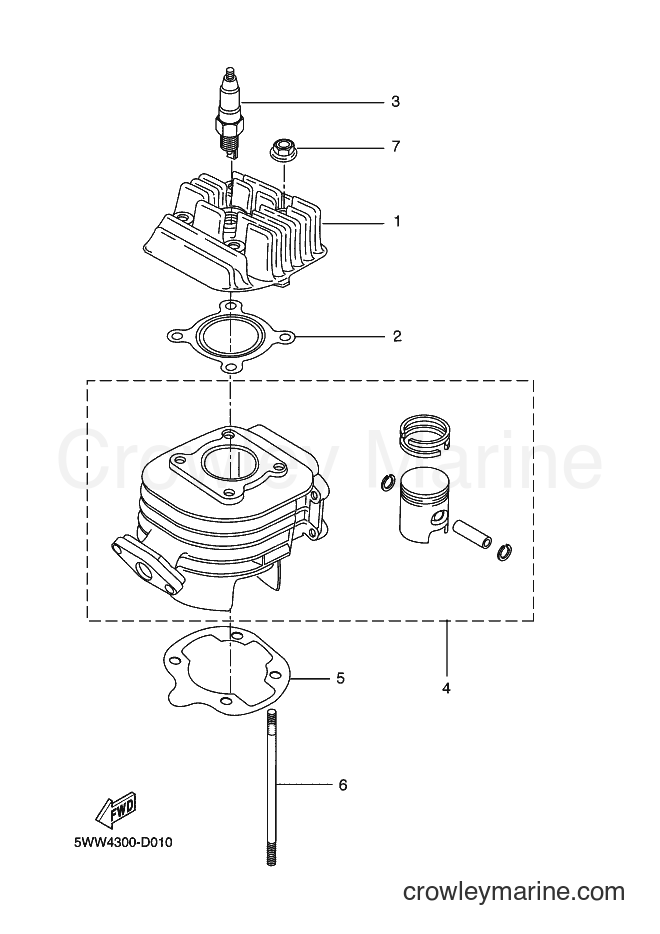

2012 Scooter CW50LN - CW50LN (1WP1) [020] CYLINDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors CW50LN (1WP1) [020] - CYLINDER
Change View:
1
Required: 1
HEAD, CYLINDER 1
Price unavailable
Cylinder Head Gasket
2
Yamaha Motors
Cylinder Head Gasket3VL-E1181-00-00
Required: 1
GASKET, CYLINDER HEAD 1
Cross Ship
Leaves in 2-5 days
$21.99
$18.69
You save $3.30
More details
3
Required: 1
PLUG, SPARK
Price unavailable
4
Required: 1
CYLINDER & PISTON SET
Price unavailable
Cylinder Gasket
5
Yamaha Motors
Cylinder Gasket3VL-E1351-00-00
Required: 1
GASKET, CYLINDER
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
6
Required: 4
BOLT, STUD
Price unavailable
Flange Nut
7
Yamaha Motors
Flange Nut95707-06500-00
Required: 4
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
