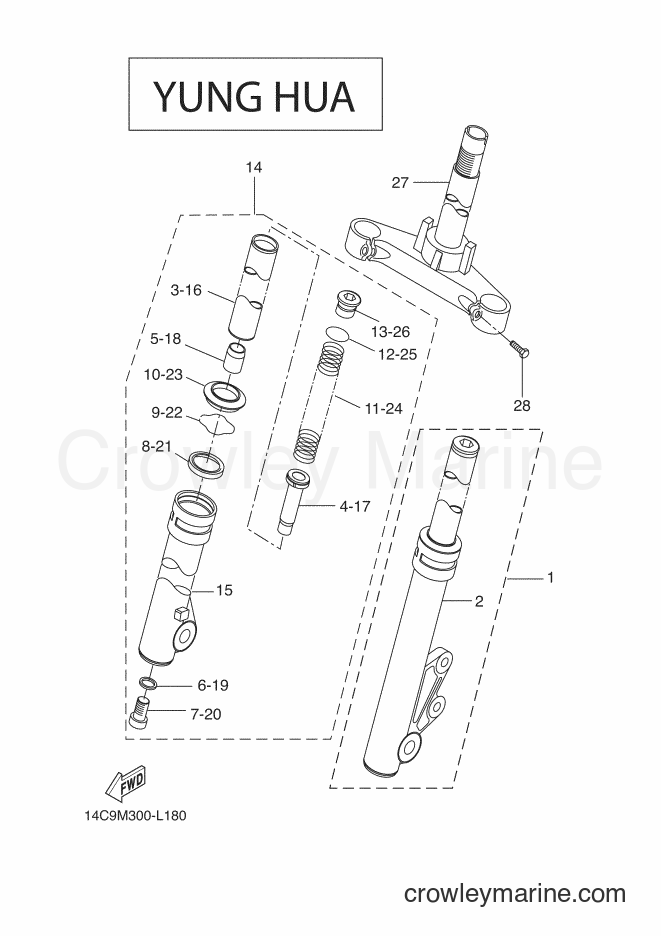

2012 Scooter CW50LN - CW50LN (14C9) [020] FRONT FORK diagram
![Yamaha Motors CW50LN (14C9) [020] - FRONT FORK](https://cdn.crowleymarine.com/yamaha/6CfwONRn.png)
1
Required: 1
FRONT FORK ASSY (L.H)
Price unavailable
1
Required: 1
FRONT FORK ASSY (L.H)
Price unavailable
2
Required: 1
. TUBE, OUTER (LEFT)
Price unavailable
2
Required: 1
. TUBE, OUTER (LEFT)
Price unavailable
3
Required: 1
. INNER TUBE COMP.1
Price unavailable
4
Required: 1
. CYLINDER COMP., FRONT FORK
Price unavailable
5
Required: 1
. SPACER, OIL LOCK
Price unavailable
6
Required: 1
. GASKET
Price unavailable
7
Required: 1
. BOLT, HEXAGON SOCKET HEAD
Price unavailable
8
Required: 1
. OIL SEAL
Price unavailable
9
Required: 1
. RING, SNAP
Price unavailable
10
Required: 1
. SEAL, DUST
Price unavailable
11
Required: 1
. SPRING, FRONT FORK
Price unavailable
12
Required: 1
. O-RING
Price unavailable
13
Required: 1
. BOLT, CAP
Price unavailable
14
Required: 1
FRONT FORK ASSY (R.H)
Price unavailable
14
Required: 1
FRONT FORK ASSY (R.H)
Price unavailable
15
Required: 1
. TUBE, OUTER (RIGHT)
Price unavailable
15
Required: 1
. TUBE, OUTER (RIGHT)
Price unavailable
16
Required: 1
. INNER TUBE COMP.1
Price unavailable
17
Required: 1
. CYLINDER COMP., FRONT FORK
Price unavailable
18
Required: 1
. SPACER, OIL LOCK
Price unavailable
19
Required: 1
. GASKET
Price unavailable
20
Required: 1
. BOLT, HEXAGON SOCKET HEAD
Price unavailable
21
Required: 1
. OIL SEAL
Price unavailable
22
Required: 1
. RING, SNAP
Price unavailable
23
Required: 1
. SEAL, DUST
Price unavailable
24
Required: 1
. SPRING, FRONT FORK
Price unavailable
25
Required: 1
. O-RING
Price unavailable
26
Required: 1
. BOLT, CAP
Price unavailable
27
Required: 1
. UNDER BRACKET COMP.
Price unavailable
28
Required: 2
. BOLT, SPECIAL
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
