2012 Scooter CS50Z - CS50Z (49DN) [050] WATER PUMP diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

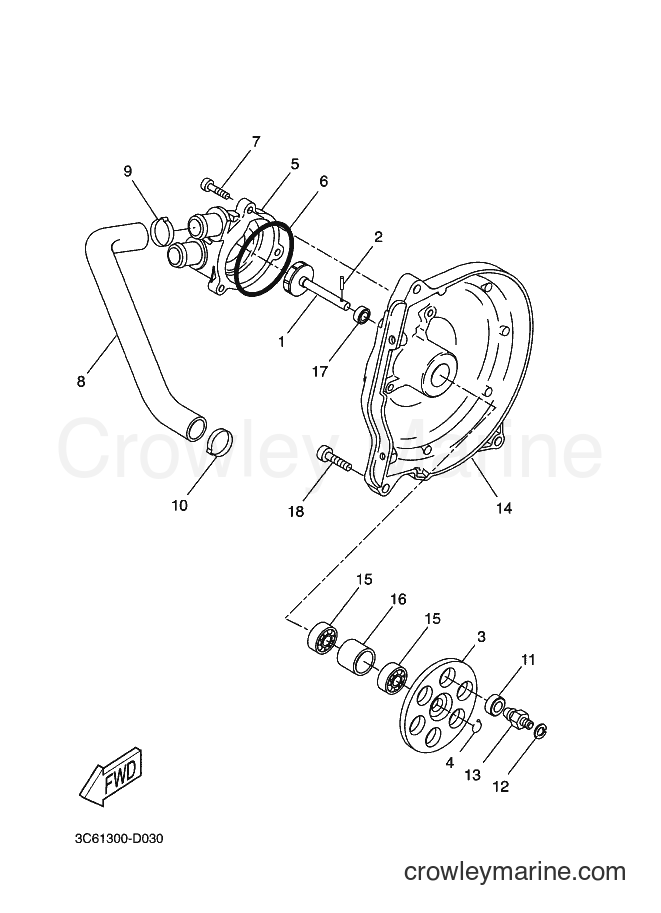

Yamaha Motors CS50Z (49DN) [050] - WATER PUMP
Change View:
1
Required: 1
IMPELLER SHAFT ASSY
Price unavailable
2
Required: 1
PIN, DOWEL
Price unavailable
3
Required: 1
GEAR, IMPELLER SHAFT
Price unavailable
Circlip (Outer)
4
Yamaha Motors
Circlip (Outer)93440-08130-00
Required: 1
CIRCLIP
Cross Ship
Leaves in 2-5 days
$0.50
$0.42
You save $0.08
More details
5
Required: 1
COVER, HOUSING
Price unavailable
6
Required: 1
O-RING
Price unavailable
BOLT
7
Yamaha Motors
BOLT91317-05020-00
Required: 3
BOLT
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
8
Required: 1
PIPE 3
Price unavailable
9
Required: 1
HOSE CLAMP ASSY
Price unavailable
10
Required: 1
HOSE CLAMP ASSY
Price unavailable
11
Required: 3
GROMMET
Price unavailable
13
Required: 3
BOLT
Price unavailable
14
Required: 1
COVER, CRANKCASE 2
Price unavailable
15
Required: 2
BEARING
Price unavailable
16
Required: 1
COLLAR
Price unavailable
17
Required: 1
OIL SEAL
Price unavailable
18
Required: 3
BOLT, HEXAGON SOCKET HEAD
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
