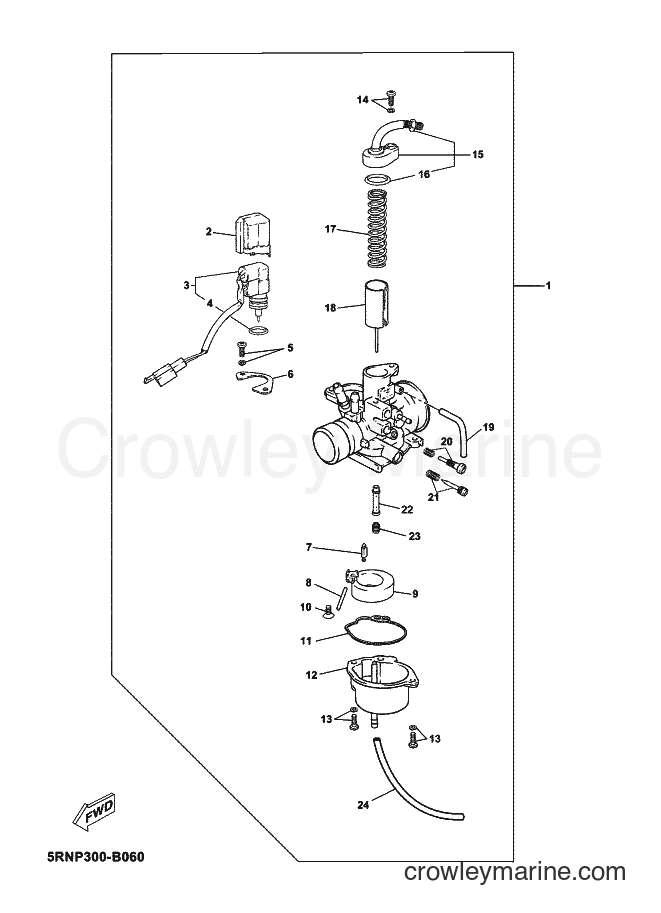

2012 Scooter CS50Z - CS50Z (49DN) [050] CARBURETOR diagram
![Yamaha Motors CS50Z (49DN) [050] - CARBURETOR](https://cdn.crowleymarine.com/yamaha/ck9E7WHM.png)
1
Required: 1
CARBURETOR ASSY 1
Price unavailable
2
Required: 1
. CAP, STARTER
Price unavailable
3
Required: 1
. STARTER SET
Price unavailable
4
Required: 1
. RING, SEAL
Price unavailable
5
Required: 2
. SCREW
Price unavailable
6
Required: 1
. PLATE
Price unavailable
7
Required: 1
. VALVE, NEEDLE
Price unavailable
8
Required: 1
. PIN, FLOAT
Price unavailable
9
Required: 1
. FLOAT
Price unavailable
10
Required: 1
. SCREW
Price unavailable
11
Required: 1
. GASKET, FLOAT CHAMBER
Price unavailable
12
Required: 1
. BODY, FLOAT CHAMBER
Price unavailable
13
Required: 2
. SCREW
Price unavailable
14
Required: 1
. SCREW
Price unavailable
15
Required: 1
. DIAPHRAGM ASSY 2
Price unavailable
16
Required: 1
. GASKET
Price unavailable
17
Required: 1
. SPRING, THROTTLE VALVE
Price unavailable
18
Required: 1
. VALVE,THROTTLE 1
Price unavailable
19
Required: 1
. HOSE
Price unavailable
20
Required: 1
. THROTTLE SCREW SET
Price unavailable
21
Required: 1
. AIR SCREW SET
Price unavailable
22
Required: 1
. NOZZLE, MAIN
Price unavailable
23
Required: 1
. JET, MAIN
Price unavailable
24
Required: 1
. PIPE
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
