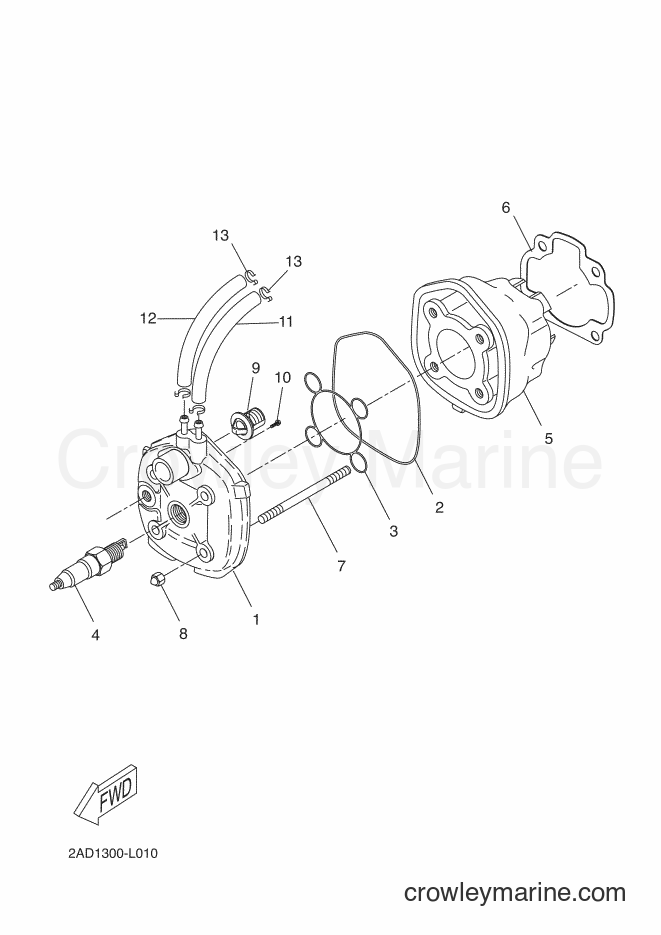

2012 Scooter CS50Z - CS50Z (2AD1) [060] CYLINDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors CS50Z (2AD1) [060] - CYLINDER
Change View:
1
Required: 1
HEAD, CYLINDER 1
Price unavailable
1
Required: 1
HEAD, CYLINDER 1
Price unavailable
2
Required: 1
GASKET, HEAD COVER 2
Price unavailable
3
Required: 1
GASKET, HEAD COVER 1
Price unavailable
4
Required: 1
PLUG, SPARK
Price unavailable
5
Required: 1
CYLINDER 1
Price unavailable
6
Required: 1
GASKET, CYLINDER
Price unavailable
7
Required: 4
BOLT, STUD
Price unavailable
8
Required: 4
NUT
Price unavailable
9
Required: 1
THERMOSTAT ASSY
Price unavailable
Bind Screw
10
Yamaha Motors
Bind Screw98907-04010-00
Required: 2
SCREW, BIND
Cross Ship
Leaves in 2-5 days
$1.35
$1.15
You save $0.20
More details
11
Required: 1
HOSE
Price unavailable
12
Required: 1
HOSE
Price unavailable
13
Required: 4
CLIP
Price unavailable
