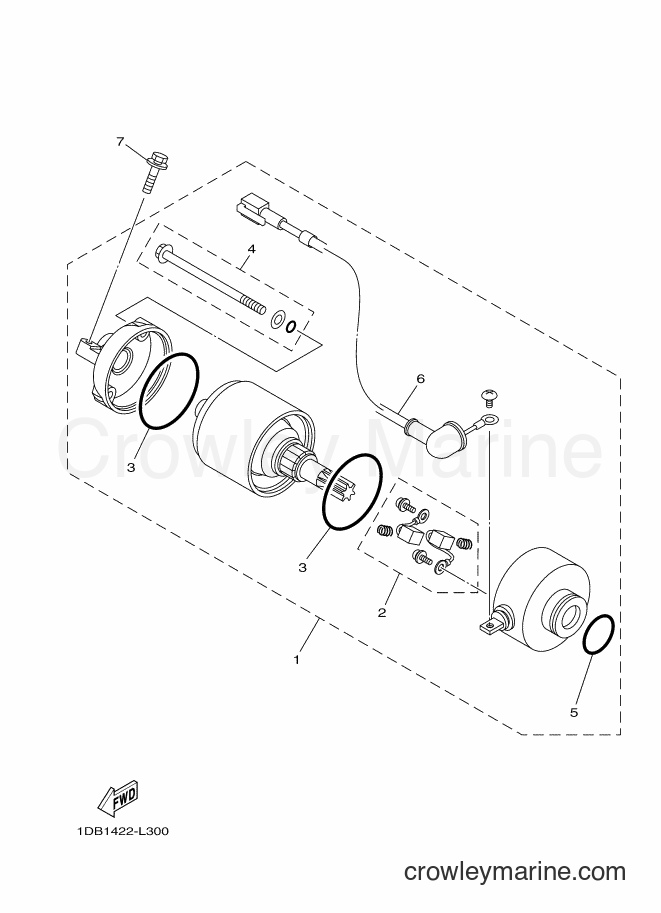

2012 Scooter AT125FC - AT125FC (1DB1) [010] STARTING MOTOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AT125FC (1DB1) [010] - STARTING MOTOR
Change View:
1
Required: 1
STARTING MOTOR ASSY
Price unavailable
Brush Set
2
Yamaha Motors
Brush Set3KW-H1801-00-00
Required: 1
. BRUSH SET
Cross Ship
Leaves in 2-5 days
$17.49
$14.87
You save $2.62
More details
O-Ring
3
Yamaha Motors
O-Ring93210-55669-00
Required: 2
. O-RING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Bolt
4
Yamaha Motors
Bolt3UH-H1828-01-00
Required: 2
. SCREW SET
Cross Ship
Leaves in 2-5 days
$0.45
$0.84
You save $-0.39
More details
O-Ring
5
Yamaha Motors
O-Ring93210-25711-00
Required: 1
. O-RING 1
Supersedes: 4FP-H182L-00-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
6
Required: 1
. CORD COMP.
Price unavailable
7
Required: 2
BOLT, WITH WASHER
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
