2012 Scooter AT125FC - AT125FC (1DB2) [010] FRONT WHEEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

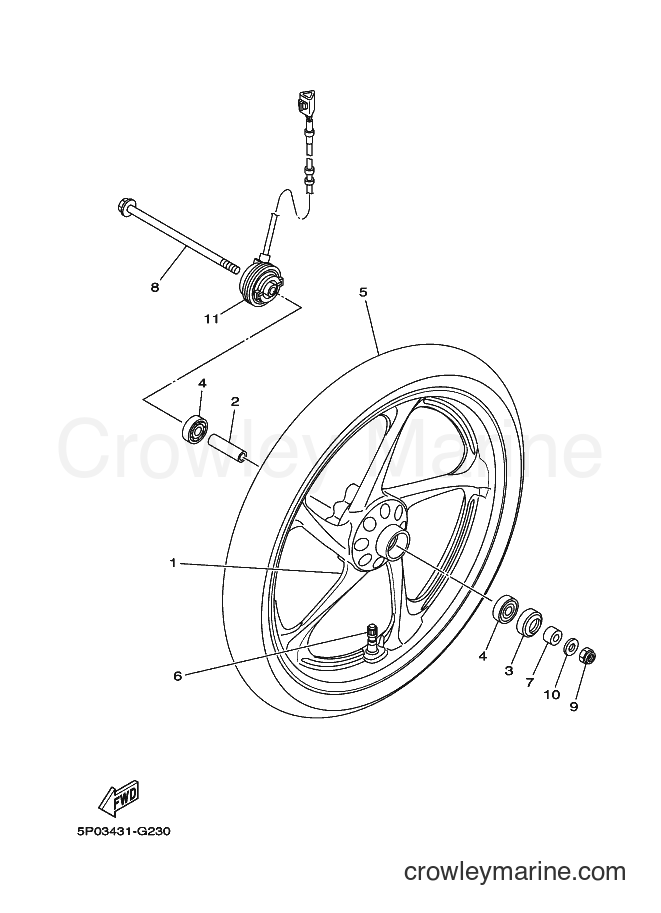

Yamaha Motors AT125FC (1DB2) [010] - FRONT WHEEL
Change View:
1
Required: 1
CAST WHEEL, FRONT
Price unavailable
1
Required: 1
CAST WHEEL, FRONT
Price unavailable
2
Required: 1
SPACER
Price unavailable
Oil Seal
3
Yamaha Motors
Oil Seal93106-20808-00
Required: 1
OIL SEAL
Cross Ship
Leaves in 2-5 days
$1.80
$1.53
You save $0.27
More details
4
Required: 2
BEARING
Price unavailable
5
Required: 1
TIRE (70/90-16 M6211 36P/TL)
Price unavailable
6
Required: 1
VALVE, RIM
Price unavailable
7
Required: 1
COLLAR
Price unavailable
8
Required: 1
AXLE, WHEEL
Price unavailable
9
Required: 1
NUT, SELF-LOCKING
Price unavailable
Plain Washer
10
Yamaha Motors
Plain Washer90201-101J1-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
11
Required: 1
SENSOR, SPEED
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
