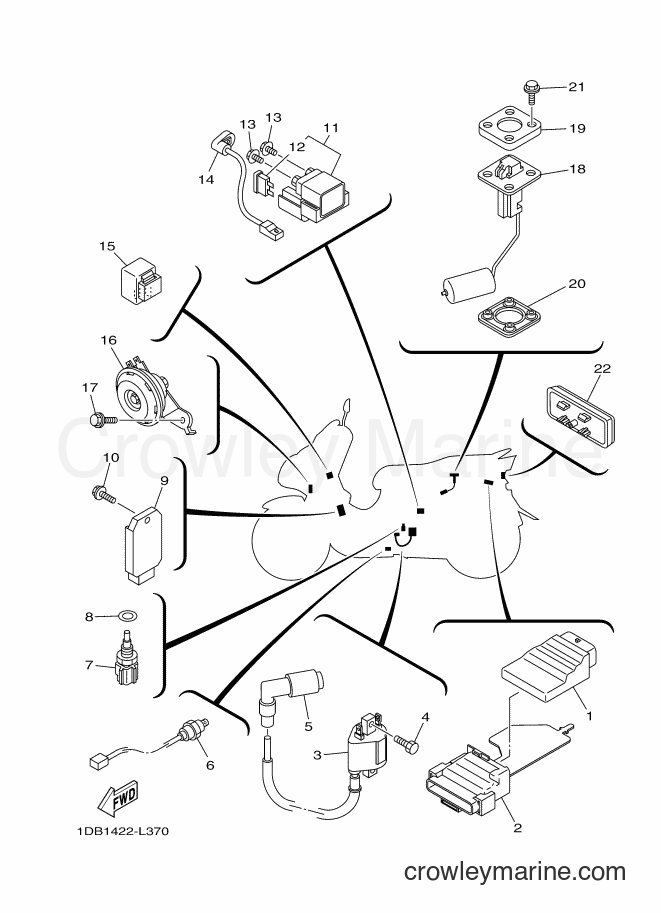

2012 Scooter AT125FC - AT125FC (1DB2) [010] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AT125FC (1DB2) [010] - ELECTRICAL 2
Change View:
1
Required: 1
ENGINE CONTROL UNIT ASSY
Price unavailable
2
Required: 1
BAND
Price unavailable
3
Required: 1
IGNITION COIL ASSY
Price unavailable
Hexagon Bolt
4
Yamaha Motors
Hexagon Bolt97017-06020-00
Required: 2
BOLT
Supersedes: 97022-06020-00
Cross Ship
Leaves in 2-5 days
$4.06
$3.45
You save $0.61
More details
5
Required: 1
PLUG CAP ASSY
Price unavailable
6
Required: 1
SENSOR, OXYGEN
Price unavailable
7
Required: 1
THERMO UNIT
Price unavailable
Tank Cap Gasket
8
Yamaha Motors
Tank Cap Gasket90430-10802-00
Required: 1
GASKET
Cross Ship
Leaves in 2-5 days
$2.90
$2.46
You save $0.44
More details
9
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
Flange Bolt
10
Yamaha Motors
Flange Bolt90105-06060-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$4.20
$3.57
You save $0.63
More details
11
Required: 1
STARTER RELAY ASSY
Price unavailable
FUSE (15 AMP)
12
Yamaha Motors
FUSE (15 AMP)36Y-82151-00-00
Required: 2
. FUSE (15A-BL)
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
Small Flange Bolt
13
Yamaha Motors
Small Flange Bolt95027-06008-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$7.99
$6.79
You save $1.20
More details
14
Required: 1
WIRE, SUB LEAD
Price unavailable
15
Required: 1
FLASHER RELAY ASSY
Price unavailable
16
Required: 1
HORN
Price unavailable
18
Required: 1
SENDER UNIT ASSY, FUEL METER
Price unavailable
19
Required: 1
RETAINER
Price unavailable
20
Required: 1
GASKET, SENDER UNIT
Price unavailable
Bolt with Washer
21
Yamaha Motors
Bolt with Washer90119-05071-00
Required: 4
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
22
Required: 1
REAR REFLECTOR ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
