All diagrams for this model

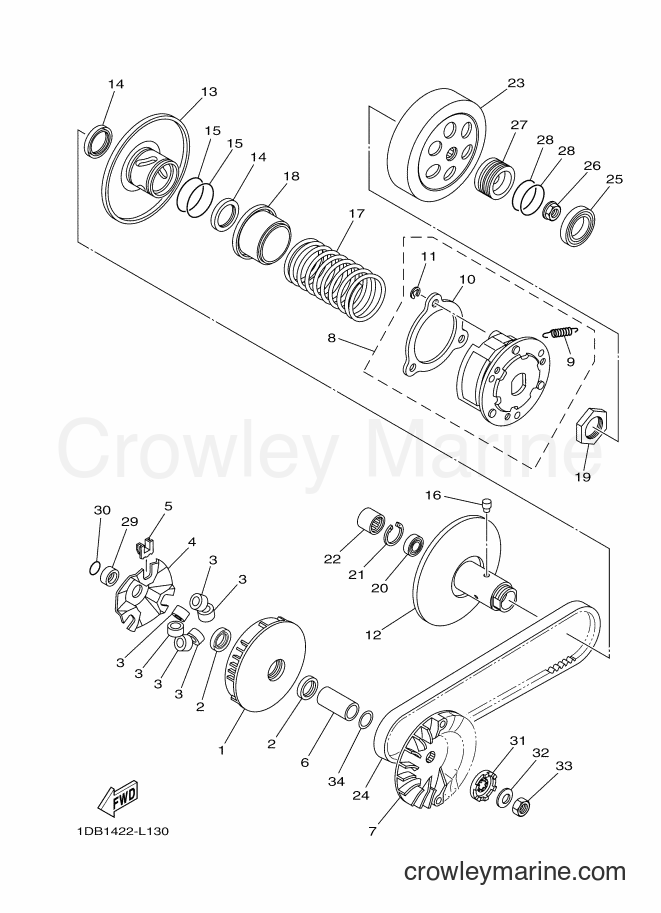

2012 Scooter AT125FC - AT125FC (1DB2) [010] CLUTCH diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AT125FC (1DB2) [010] - CLUTCH
Change View:
1
Required: 1
PRIMARY SLIDING SHEAVE COMP.
Price unavailable
2
Required: 2
OIL SEAL
Price unavailable
3
Required: 6
WEIGHT
Price unavailable
4
Required: 1
CAM
Price unavailable
5
Required: 3
SLIDER
Price unavailable
6
Required: 1
COLLAR
Price unavailable
7
Required: 1
SHEAVE, PRIMARY FIXED
Price unavailable
8
Required: 1
CLUTCH CARRIER ASSY
Price unavailable
9
Required: 3
. SPRING, CLUTCH WEIGHT 1
Price unavailable
10
Required: 1
. PLATE, WEIGHT THRUST
Price unavailable
12
Required: 1
SECONDARY FIXED SHEAVE COMP.
Price unavailable
13
Required: 1
SECONDARY SLIDING SHEAVE
Price unavailable
14
Required: 2
OIL SEAL
Price unavailable
15
Required: 2
O-RING
Price unavailable
16
Required: 3
PIN, GUIDE
Price unavailable
17
Required: 1
SPRING, COMPRESSION
Price unavailable
18
Required: 1
SPRING SEAT COMP.
Price unavailable
19
Required: 1
NUT
Price unavailable
20
Required: 1
BEARING
Price unavailable
21
Required: 1
CIRCLIP
Price unavailable
22
Required: 1
BEARING
Price unavailable
23
Required: 1
CLUTCH HOUSING COMP.
Price unavailable
24
Required: 1
V-BELT
Price unavailable
25
Required: 1
BEARING
Price unavailable
Nut
26
Yamaha Motors
Nut90179-10803-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$2.25
$1.91
You save $0.34
More details
27
Required: 1
SPACER
Price unavailable
28
Required: 2
O-RING
Price unavailable
29
Required: 1
COLLAR
Price unavailable
30
Required: 1
O-RING
Price unavailable
31
Required: 1
CLUTCH, ONEWAY
Price unavailable
32
Required: 1
WASHER, CONICAL SPRING
Price unavailable
Nut
33
Yamaha Motors
Nut90170-12800-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$1.15
$0.98
You save $0.17
More details
34
Required: 1
WASHER, PLATE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
