2012 Scooter AT125FC - AT125FC (1DC1) [010] TRANSMISSION diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

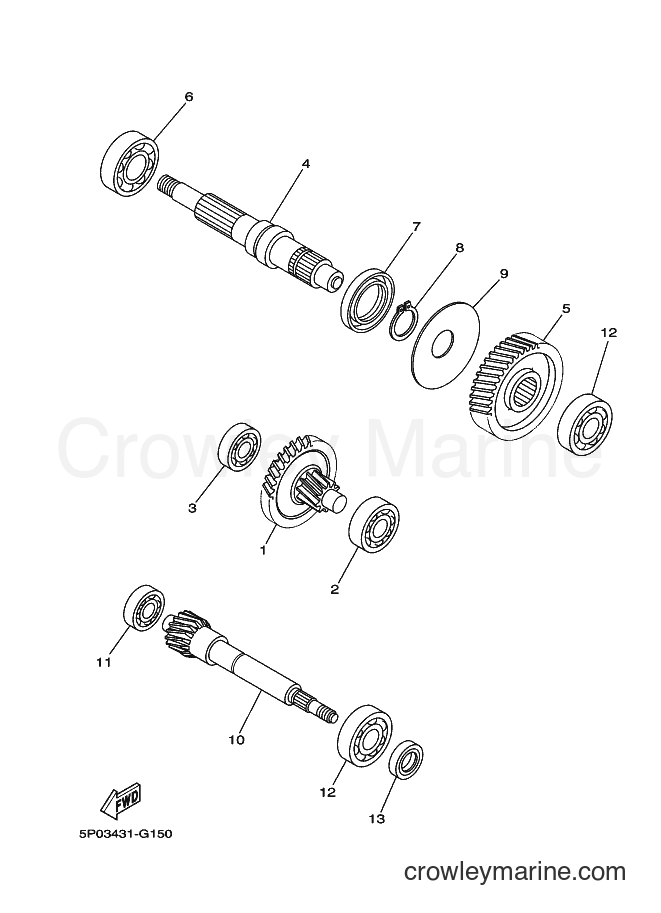

Yamaha Motors AT125FC (1DC1) [010] - TRANSMISSION
Change View:
1
Required: 1
MAIN AXLE COMP. (12T/42T)
Price unavailable
2
Required: 1
BEARING
Price unavailable
3
Required: 1
BEARING
Price unavailable
4
Required: 1
AXLE, DRIVE
Price unavailable
5
Required: 1
GEAR, 1ST WHEEL (46T)
Price unavailable
6
Required: 1
BEARING
Price unavailable
7
Required: 1
OIL SEAL
Price unavailable
Circle Clip
8
Yamaha Motors
Circle Clip99009-25400-00
Required: 1
CIRCLIP
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
9
Required: 1
WASHER, CONICAL SPRING
Price unavailable
10
Required: 1
GEAR, PRIMARY DRIVE (16T)
Price unavailable
11
Required: 1
BEARING
Price unavailable
12
Required: 2
BEARING
Price unavailable
13
Required: 1
OIL SEAL
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
