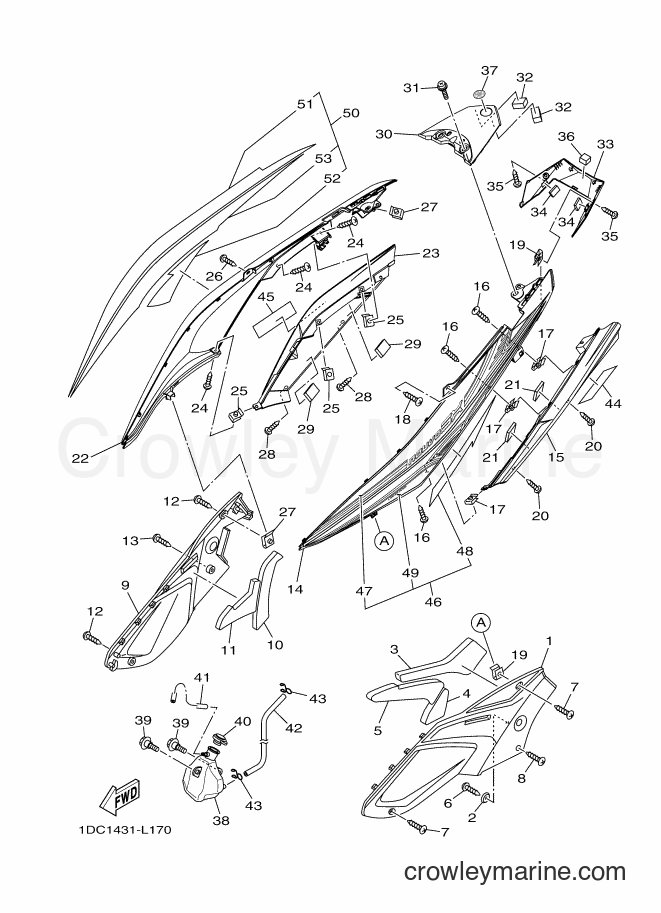

2012 Scooter AT125FC - AT125FC (1DC1) [010] SIDE COVER diagram
![Yamaha Motors AT125FC (1DC1) [010] - SIDE COVER](https://cdn.crowleymarine.com/yamaha/UNw1FvST.png)
1
Required: 1
COVER, SIDE 1 (0895,S8)
Price unavailable
2
Required: 1
WASHER, CONICAL SPRING
Price unavailable
3
Required: 1
DAMPER
Price unavailable
4
Required: 1
DAMPER, LOCATING 1
Price unavailable
5
Required: 1
DAMPER, LOCATING 2
Price unavailable
6
Yamaha Motors
Truss Screw97707-50012-00
Required: 1
SCREW, TRUSS HEAD TAPPING
$3.94
You save $0.69
7
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TRUSS HEAD TAPPING
$8.07
You save $1.42
8
Yamaha Motors
Tapping Screw97780-50014-00
Required: 1
SCREW, TAPPING
$2.80
You save $0.50
9
Required: 1
COVER, SIDE 2 (0895,S8)
Price unavailable
10
Required: 1
DAMPER, LOCATING 3
Price unavailable
11
Required: 1
DAMPER, LOCATING 4
Price unavailable
12
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TRUSS HEAD TAPPING
$8.07
You save $1.42
13
Yamaha Motors
Tapping Screw97780-50014-00
Required: 1
SCREW, TAPPING
$2.80
You save $0.50
14
Required: 1
COVER, SIDE 3 (1121,SMY)
Price unavailable
15
Required: 1
MOLE,SIDE COVER 3 (0582,MBL2)
Price unavailable
16
Yamaha Motors
Truss Screw97707-50014-00
Required: 3
SCREW, TRUSS HEAD TAPPING
$8.07
You save $1.42
17
Yamaha Motors
Spring Nut90183-05042-00
Required: 3
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
18
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 1
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
19
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
20
Required: 2
SCREW, TAPPING
Price unavailable
21
Required: 2
DAMPER, PLATE
Price unavailable
22
Required: 1
COVER, SIDE 4 (1121,SMY)
Price unavailable
23
Required: 1
MOLE,SIDE COVER 4 (0582,MBL2)
Price unavailable
24
Yamaha Motors
Truss Screw97707-50014-00
Required: 3
SCREW, TRUSS HEAD TAPPING
$8.07
You save $1.42
25
Yamaha Motors
Spring Nut90183-05042-00
Required: 3
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
26
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 1
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
27
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
28
Required: 2
SCREW, TAPPING
Price unavailable
29
Required: 2
DAMPER, PLATE
Price unavailable
30
Required: 1
COVER, SIDE 5 (1121,SMY)
Price unavailable
31
Yamaha Motors
Screw with Washer90159-06067-00
Required: 2
SCREW, WITH WASHER
$8.92
You save $1.57
32
Required: 2
DAMPER, PLATE
Price unavailable
33
Required: 1
COVER, SIDE 6 (1121,SMY)
Price unavailable
34
Required: 2
DAMPER
Price unavailable
35
Required: 2
SCREW, TAPPING
Price unavailable
36
Required: 1
DAMPER, PLATE
Price unavailable
37
Required: 1
EMBLEM
Price unavailable
38
Required: 1
TANK, RECOVERY
Price unavailable
$9.77
You save $1.72
40
Required: 1
CAP
Price unavailable
41
Required: 1
PIPE 1
Price unavailable
42
Required: 1
PIPE 2
Price unavailable
$9.77
You save $1.72
44
Yamaha Motors
99246-00100-0099236-00100-00
Required: 1
EMBLEM, YAMAHA
$8.92
You save $1.57
45
Yamaha Motors
99246-00100-0099236-00100-00
Required: 1
EMBLEM, YAMAHA
$8.92
You save $1.57
46
Required: 1
GRAPHIC SET, SIDE COVER 3
Price unavailable
47
Required: 1
. GRAPHIC 1
Price unavailable
48
Required: 1
. GRAPHIC 3
Price unavailable
49
Required: 1
. GRAPHIC 7
Price unavailable
50
Required: 1
GRAPHIC SET, SIDE COVER 4
Price unavailable
51
Required: 1
. GRAPHIC 2
Price unavailable
52
Required: 1
. GRAPHIC 4
Price unavailable
53
Required: 1
. GRAPHIC 8
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
