2012 Scooter AT125F - AT125F (1DC2) [010] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

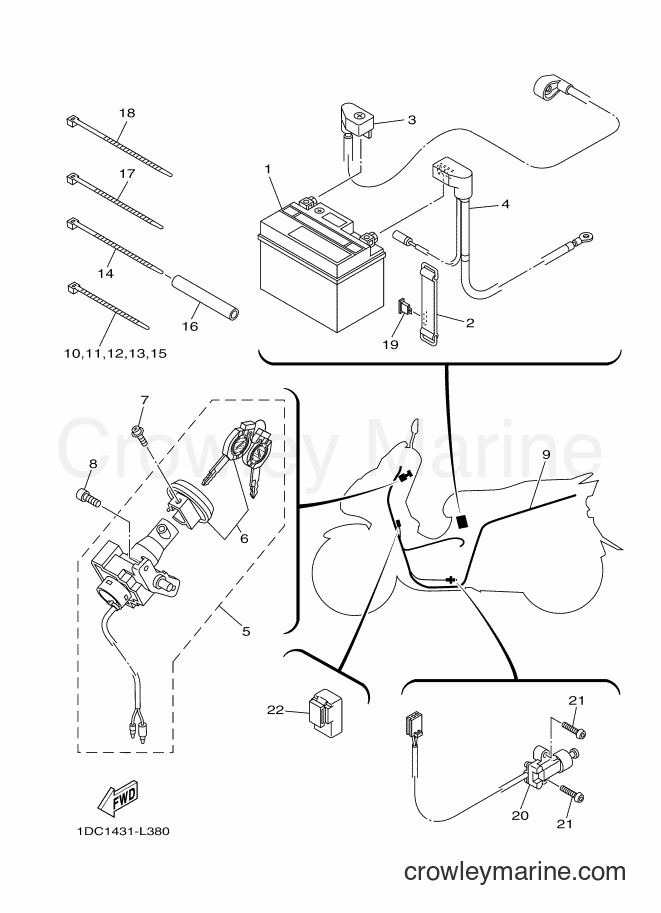

Yamaha Motors AT125F (1DC2) [010] - ELECTRICAL 1
Change View:
1
Required: 1
BATTERY ASSY (GS GTZ5S)
Price unavailable
2
Required: 1
BAND, BATTERY
Price unavailable
3
Required: 1
WIRE, PLUS LEAD
Price unavailable
4
Required: 1
WIRE, MINUS LEAD
Price unavailable
5
Required: 1
MAIN SWITCH ASSY
Price unavailable
6
Required: 1
. SHUTTER ASSY.
Price unavailable
7
Required: 1
SCREW,WITH WASHER
Price unavailable
BOLT
8
Yamaha Motors
BOLT91317-06014-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
9
Required: 1
WIRE HARNESS ASSY
Price unavailable
10
Required: 1
CLAMP
Price unavailable
11
Required: 1
CLAMP
Price unavailable
12
Required: 2
CLAMP
Price unavailable
13
Required: 1
CLAMP
Price unavailable
Clamp
14
Yamaha Motors
Clamp90464-50800-00
Required: 2
CLAMP
Cross Ship
Leaves in 2-5 days
$1.85
$1.57
You save $0.28
More details
15
Required: 1
CLAMP
Price unavailable
16
Required: 2
HOSE
Price unavailable
Clamp
17
Yamaha Motors
Clamp90464-50800-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$1.85
$1.57
You save $0.28
More details
Clamp
18
Yamaha Motors
Clamp90464-15152-00
Required: 1
CLAMP
Supersedes: 90465-13275-00
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
19
Required: 1
FUSE (10A)
Price unavailable
20
Required: 1
SWITCH, SIDE STAND
Price unavailable
BOLT
21
Yamaha Motors
BOLT90111-05810-00
Required: 2
BOLT,HEX. SOCKET BUTTON
Cross Ship
Leaves in 2-5 days
$1.05
$0.89
You save $0.16
More details
22
Required: 1
RELAY ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
