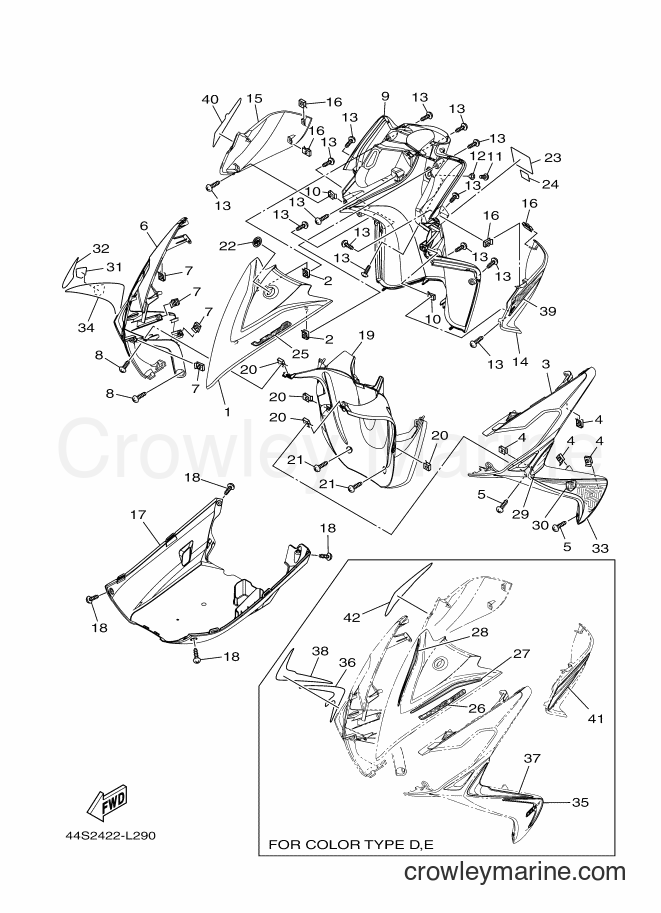

2012 Scooter AL125C - AL125C (44S2) [010] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AL125C (44S2) [010] - LEG SHIELD
Change View:
1
Required: 1
PANEL, FRONT
Price unavailable
2
Required: 2
NUT, SPRING
Price unavailable
3
Required: 1
PANEL 1
Price unavailable
4
Required: 4
NUT, SPRING
Price unavailable
Truss Screw
5
Yamaha Motors
Truss Screw97707-50014-00
Required: 3
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
6
Required: 1
PANEL 2
Price unavailable
7
Required: 4
NUT, SPRING
Price unavailable
Truss Screw
8
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
9
Required: 1
LEG SHIELD 2
Price unavailable
10
Required: 2
NUT, SPRING
Price unavailable
11
Required: 1
BOLT,HEX. SOCKET BUTTON
Price unavailable
12
Required: 1
COLLAR
Price unavailable
Truss Screw
13
Yamaha Motors
Truss Screw97707-50014-00
Required: 14
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
14
Required: 1
PANEL, INNER 1
Price unavailable
15
Required: 1
PANEL, INNER 2
Price unavailable
16
Required: 4
NUT, SPRING
Price unavailable
17
Required: 1
COVER, UNDER
Price unavailable
Truss Screw
18
Yamaha Motors
Truss Screw97707-50014-00
Required: 4
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
19
Required: 1
FENDER, INNER
Price unavailable
20
Required: 4
NUT, SPRING
Price unavailable
Truss Screw
21
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
22
Required: 1
TUNING FORK MARK
Price unavailable
23
Required: 1
LABEL, CAUTION
Price unavailable
24
Required: 1
LABEL, WARNING
Price unavailable
25
Required: 1
EMBLEM 2
Price unavailable
29
Required: 1
GRAPHIC, 5
Price unavailable
30
Required: 1
EMBLEM 3D
Price unavailable
31
Required: 1
EMBLEM 3D
Price unavailable
32
Required: 1
GRAPHIC, 6
Price unavailable
33
Required: 1
GRAPHIC, 7
Price unavailable
34
Required: 1
GRAPHIC, 8
Price unavailable
39
Required: 1
GRAPHIC, 9
Price unavailable
40
Required: 1
GRAPHIC, 10
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
