All diagrams for this model

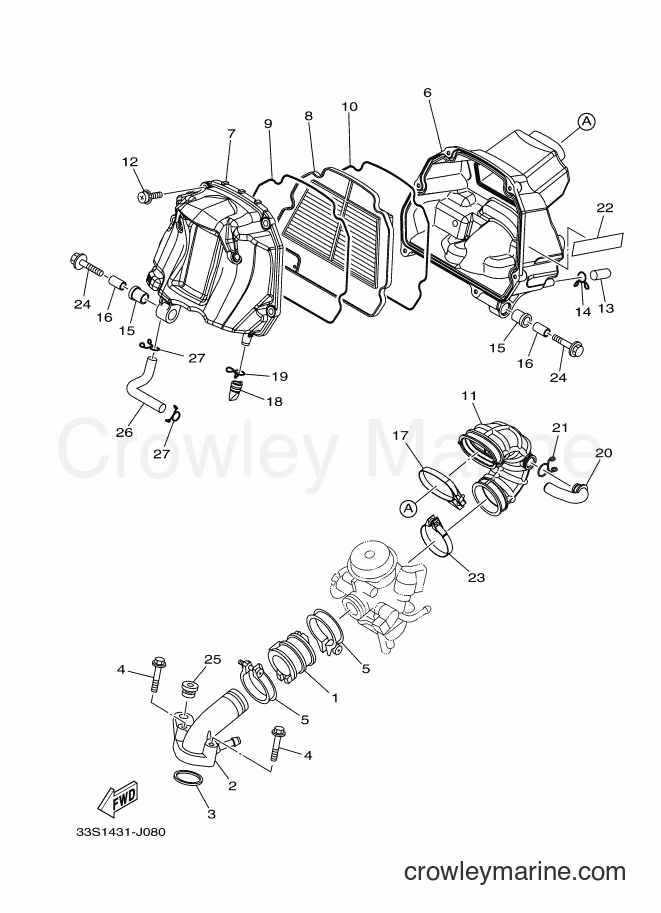

2012 Scooter AL125C - AL125C (44S2) [010] INTAKE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AL125C (44S2) [010] - INTAKE
Change View:
1
Required: 1
JOINT, CARBURETOR 1
Price unavailable
2
Required: 1
JT. , CARBURETOR
Price unavailable
O-Ring
3
Yamaha Motors
O-Ring93210-30611-00
Required: 1
O-RING
Cross Ship
Leaves in 2-5 days
$14.49
$12.32
You save $2.17
More details
Flange Bolt
4
Yamaha Motors
Flange Bolt95817-06040-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
5
Required: 2
BAND
Price unavailable
6
Required: 1
AIR CLEANER CASE COMP.
Price unavailable
7
Required: 1
CAP, CLEANER CASE 1
Price unavailable
8
Required: 1
ELEMENT, AIR CLEANER
Price unavailable
9
Required: 1
SEAL
Price unavailable
10
Required: 1
SEAL
Price unavailable
11
Required: 1
JOINT, AIR CLEANER 1
Price unavailable
PAN HEAD SCREW - W/WASHER
12
Yamaha Motors
PAN HEAD SCREW - W/WASHER97602-05320-00
Required: 6
SCREW, PAN HEAD WITH WASHER
Cross Ship
Leaves in 2-5 days
$0.70
$0.60
You save $0.10
More details
13
Required: 1
PIPE, DRAIN
Price unavailable
14
Required: 1
CLIP
Price unavailable
15
Required: 2
GROMMET
Price unavailable
16
Required: 2
COLLAR
Price unavailable
17
Required: 1
BAND
Price unavailable
18
Required: 1
PIPE, DRAIN 2
Price unavailable
19
Required: 1
CLIP
Price unavailable
20
Required: 1
PIPE
Price unavailable
21
Required: 1
CLIP
Price unavailable
22
Required: 1
LABEL, CAUTION
Price unavailable
23
Required: 1
HOSE CLAMP ASSY
Price unavailable
Flange Bolt
24
Yamaha Motors
Flange Bolt95817-06035-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
25
Required: 1
GROMMET
Price unavailable
26
Required: 1
PIPE, BREATHER 1
Price unavailable
Clip
27
Yamaha Motors
Clip90467-11825-00
Required: 2
CLIP
Cross Ship
Leaves in 2-5 days
$0.80
$0.68
You save $0.12
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
