All diagrams for this model

2012 Scooter AL125C - AL125C (44S2) [010] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

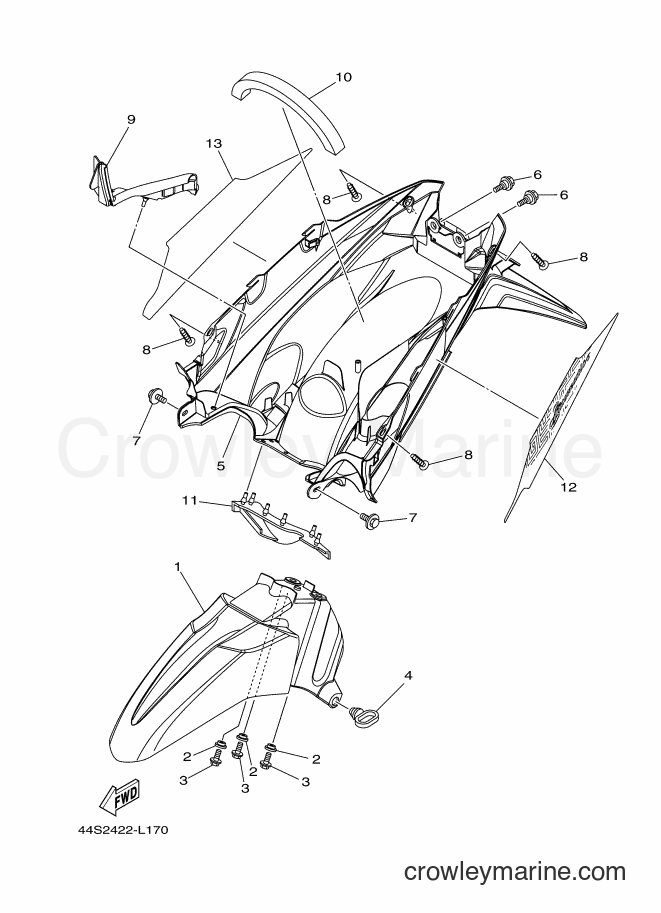

Yamaha Motors AL125C (44S2) [010] - FENDER
Change View:
1
Required: 1
FENDER, FRONT
Price unavailable
2
Required: 3
COLLAR
Price unavailable
4
Required: 1
HOLDER, CABLE
Price unavailable
5
Required: 1
FENDER, REAR
Price unavailable
BOLT
6
Yamaha Motors
BOLT90109-06220-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
Bolt with Washer
7
Yamaha Motors
Bolt with Washer90119-06242-00
Required: 2
BOLT, WITH WASHER
Supersedes: 90119-06044-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Truss Screw
8
Yamaha Motors
Truss Screw97707-50014-00
Required: 4
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
9
Required: 1
PROTECTOR
Price unavailable
10
Required: 1
DAMPER, PLATE
Price unavailable
11
Required: 1
FLAP
Price unavailable
12
Required: 1
GRAPHIC, R.FENDER COVER (L.H)
Price unavailable
13
Required: 1
GRAPHIC, R.FENDER COVER (R.H)
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
