All diagrams for this model

2012 Scooter AL125C - AL125C (44S2) [010] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

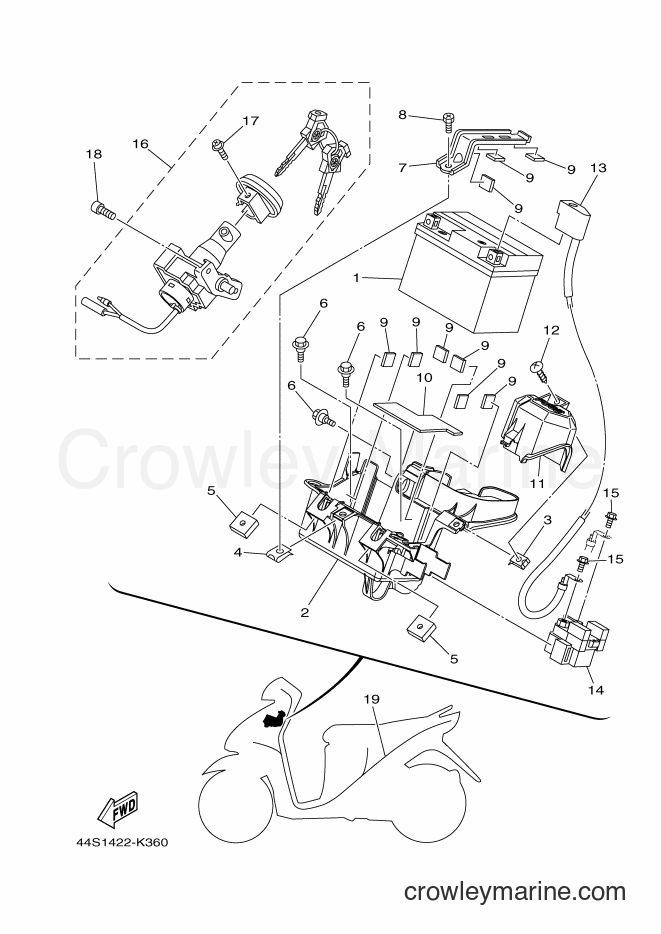

Yamaha Motors AL125C (44S2) [010] - ELECTRICAL 1
Change View:
1
Required: 1
BATTERY ASSY (GS GTZ5S)
Price unavailable
2
Required: 1
BOX, BATTERY 1
Price unavailable
3
Required: 1
NUT, SPRING
Price unavailable
5
Required: 2
NUT, SQUARE
Price unavailable
BOLT
6
Yamaha Motors
BOLT90109-06220-00
Required: 3
BOLT
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
7
Required: 1
PLATE, BATTERY FITTING
Price unavailable
Hexagon Screw
8
Yamaha Motors
Hexagon Screw90153-06022-00
Required: 1
SCREW, HEXAGON
Cross Ship
Leaves in 2-5 days
$0.50
$0.42
You save $0.08
More details
9
Required: 9
DAMPER, PLATE
Price unavailable
10
Required: 1
DAMPER
Price unavailable
11
Required: 1
COVER, CAP
Price unavailable
Truss Screw
12
Yamaha Motors
Truss Screw97707-50014-00
Required: 1
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
13
Required: 1
WIRE, PLUS LEAD
Price unavailable
14
Required: 1
STARTER RELAY ASSY
Price unavailable
Small Flange Bolt
15
Yamaha Motors
Small Flange Bolt95027-06008-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$7.99
$6.79
You save $1.20
More details
16
Required: 1
MAIN SWITCH ASSY
Price unavailable
17
Required: 1
SCREW,WITH WASHER
Price unavailable
BOLT
18
Yamaha Motors
BOLT91317-06014-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
19
Required: 1
WIRE HARNESS ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
