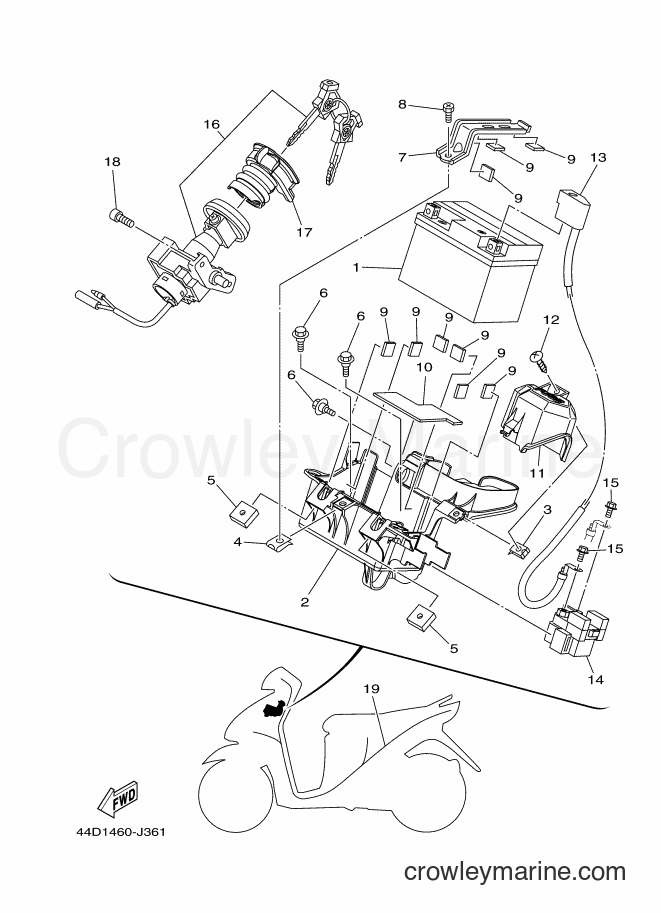

2012 Scooter AL125C - AL125C (44D3) [010] ELECTRICAL 1 diagram
![Yamaha Motors AL125C (44D3) [010] - ELECTRICAL 1](https://cdn.crowleymarine.com/yamaha/c3b0UDWT.png)
1
Required: 1
BATTERY ASSY (YTZ5S MF YUASA)
Price unavailable
2
Required: 1
BOX, BATTERY 1
Price unavailable
-50%
3
Yamaha Motors
Spring Nut90183-05042-00
Required: 1
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
4
Required: 1
NUT, SPRING
Price unavailable
5
Required: 2
NUT, SQUARE
Price unavailable
$9.77
You save $1.72
7
Required: 1
PLATE, BATTERY FITTING
Price unavailable
8
Yamaha Motors
Hexagon Screw90153-06022-00
Required: 1
SCREW, HEXAGON
$0.95
You save $-0.45
9
Required: 9
DAMPER, PLATE
Price unavailable
10
Required: 1
DAMPER
Price unavailable
11
Required: 1
COVER, CAP
Price unavailable
12
Yamaha Motors
Truss Screw97707-50014-00
Required: 1
SCREW, TRUSS HEAD TAPPING
$8.07
You save $1.42
13
Required: 1
WIRE, PLUS LEAD
Price unavailable
14
Required: 1
STARTER RELAY ASSY
Price unavailable
$6.79
You save $1.20
16
Required: 1
MAIN SWITCH COMP.
Price unavailable
17
Required: 1
COVER, MAIN SWITCH
Price unavailable
$8.92
You save $1.57
19
Required: 1
WIRE HARNESS ASSY
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
