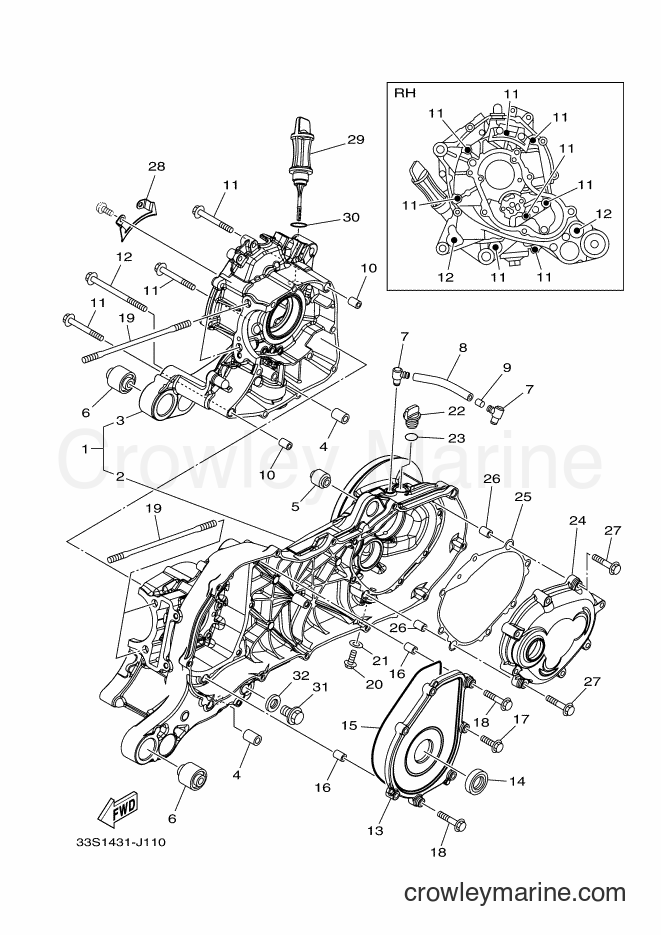

2012 Scooter AL125 - AL125 (33S9) [010] CRANKCASE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AL125 (33S9) [010] - CRANKCASE
Change View:
1
Required: 1
CRANKCASE ASSY
Price unavailable
2
Required: 1
. CRANKCASE 1
Price unavailable
3
Required: 1
. CRANKCASE 2
Price unavailable
4
Required: 2
BUSH
Price unavailable
5
Required: 1
BUSH, REAR SHOCK ABSORBER
Price unavailable
6
Required: 2
DAMPER
Price unavailable
7
Required: 2
BREATHER
Price unavailable
8
Required: 1
PIPE, BREATHER
Price unavailable
9
Required: 1
ELEMENT 2
Price unavailable
Small Bolt Flange
11
Yamaha Motors
Small Bolt Flange95027-06060-00
Required: 8
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.10
$2.63
You save $0.47
More details
Flange Bolt
12
Yamaha Motors
Flange Bolt95027-06100-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$2.00
$1.70
You save $0.30
More details
13
Required: 1
COVER 2
Price unavailable
14
Required: 1
OIL SEAL
Price unavailable
15
Required: 1
O-RING
Price unavailable
Small Bolt Flange
18
Yamaha Motors
Small Bolt Flange95027-06035-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$2.40
$2.04
You save $0.36
More details
19
Required: 4
BOLT, STUD
Price unavailable
Flange Bolt
20
Yamaha Motors
Flange Bolt95817-08016-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
21
Required: 1
GASKET
Price unavailable
22
Required: 1
PLUG, OIL
Price unavailable
23
Required: 1
O-RING
Price unavailable
24
Required: 1
COVER, CRANKCASE 2
Price unavailable
25
Required: 1
GASKET, CRANKCASE COVER 2
Price unavailable
Small Bolt Flange
27
Yamaha Motors
Small Bolt Flange95027-06035-00
Required: 8
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$2.40
$2.04
You save $0.36
More details
28
Required: 1
PLATE
Price unavailable
29
Required: 1
PLUG, OIL LEVEL
Price unavailable
30
Required: 1
O-RING
Price unavailable
31
Required: 1
PLUG, STRAIGHT SCREW
Price unavailable
Gasket
32
Yamaha Motors
Gasket812-11198-00-00
Required: 1
GASKET
Supersedes: 4YS-E1198-00-00
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
