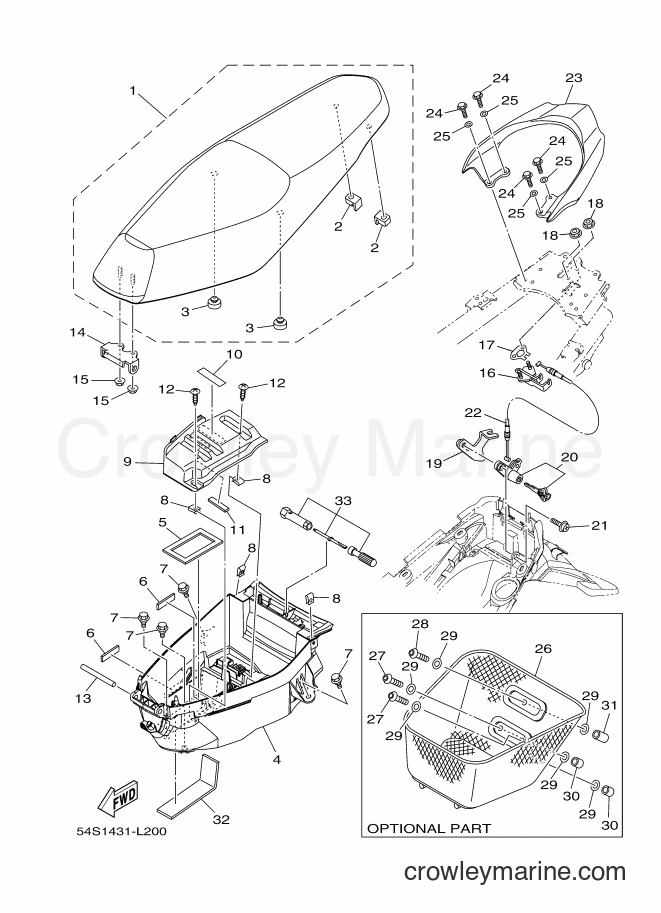

2012 Scooter AL115FC - AL115FC (54S2) [010] SEAT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AL115FC (54S2) [010] - SEAT
Change View:
1
Required: 1
DOUBLE SEAT ASSY
Price unavailable
2
Required: 2
. PAD, SEAT
Price unavailable
3
Required: 2
. PAD, SEAT
Price unavailable
4
Required: 1
BOX ASSY
Price unavailable
5
Required: 1
DAMPER
Price unavailable
6
Required: 2
DAMPER, PLATE
Price unavailable
9
Required: 1
COVER, BATTERY
Price unavailable
10
Required: 1
LABEL, BATTERY
Price unavailable
11
Required: 1
DAMPER, PLATE
Price unavailable
Truss Screw
12
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TRUSS HEAD TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
13
Required: 1
PIN, SEAT FITTING
Price unavailable
14
Required: 1
HINGE, SEAT
Price unavailable
16
Required: 1
SEAT LOCK ASSY
Price unavailable
17
Required: 1
PLATE
Price unavailable
19
Required: 1
STAY, LOCK
Price unavailable
20
Required: 1
ROTOR ASSY
Price unavailable
Screw With Washer
21
Yamaha Motors
Screw With Washer90159-06054-00
Required: 1
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$2.80
$2.38
You save $0.42
More details
22
Required: 1
CABLE, SEAT LOCK
Price unavailable
23
Required: 1
HANDLE, SEAT (0903,SMX)
Price unavailable
Plate Washer
25
Yamaha Motors
Plate Washer90201-06045-00
Required: 4
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
26
Required: 1
BASKET, FRONT
Price unavailable
Button head bolt
27
Yamaha Motors
Button head bolt92017-06040-00
Required: 2
BOLT, BUTTON HEAD
Cross Ship
Leaves in 2-5 days
$4.50
$3.82
You save $0.68
More details
Button head bolt
28
Yamaha Motors
Button head bolt92017-06050-00
Required: 1
BOLT, BUTTON HEAD
Cross Ship
Leaves in 2-5 days
$2.45
$2.08
You save $0.37
More details
Plate Washer
29
Yamaha Motors
Plate Washer90201-064J1-00
Required: 6
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
30
Required: 2
COLLAR
Price unavailable
31
Required: 1
COLLAR
Price unavailable
33
Required: 1
TOOL KIT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
