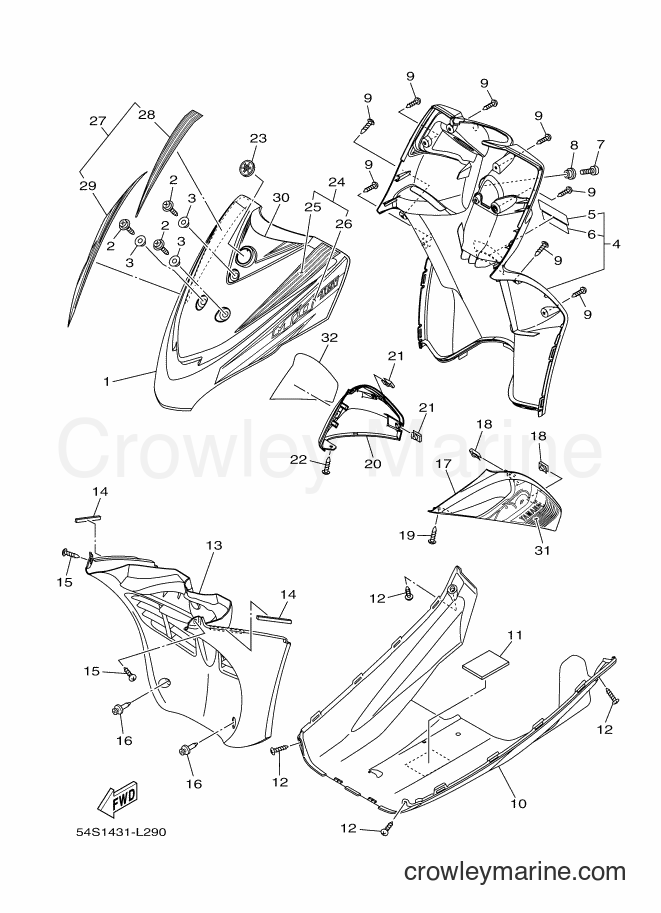

2012 Scooter AL115FC - AL115FC (54S2) [010] LEG SHIELD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AL115FC (54S2) [010] - LEG SHIELD
Change View:
1
Required: 1
LEG SHIELD 1 (1124,WM6)
Price unavailable
2
Required: 3
SCREW, WITH WASHER
Price unavailable
3
Required: 3
COLLAR
Price unavailable
4
Required: 1
LEG SHIELD SET (0033,YB)
Price unavailable
4
Required: 1
LEG SHIELD SET (00TR,RTR)
Price unavailable
5
Required: 1
. LABEL, WARNING
Price unavailable
6
Required: 1
. LABEL, SAFETY
Price unavailable
Bind Screw
7
Yamaha Motors
Bind Screw98907-06012-00
Required: 1
SCREW, BIND
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
8
Required: 1
COLLAR
Price unavailable
10
Required: 1
COVER, UNDER (0033YB)
Price unavailable
11
Required: 1
DAMPER 1
Price unavailable
13
Required: 1
FENDER, INNER (0033,YB)
Price unavailable
14
Required: 2
DAMPER, PLATE
Price unavailable
RIVET
16
Yamaha Motors
RIVET90269-06812-00
Required: 2
RIVET
Cross Ship
Leaves in 2-5 days
$1.30
$1.10
You save $0.20
More details
17
Required: 1
COVER, FLASHER 1 (0903,SMX)
Price unavailable
20
Required: 1
COVER, FLASHER 2 (0903,SMX)
Price unavailable
23
Required: 1
EMBLEM
Price unavailable
24
Required: 1
GRAPHIC SET, LEG SHIELD 1 (L)
Price unavailable
25
Required: 1
. GRAPHIC 1
Price unavailable
26
Required: 1
. GRAPHIC 3
Price unavailable
27
Required: 1
GRAPHIC SET, LEG SHIELD 1 (R)
Price unavailable
27
Required: 1
GRAPHIC SET, LEG SHIELD 1 (R)
Price unavailable
28
Required: 1
. GRAPHIC 2
Price unavailable
28
Required: 1
. GRAPHIC 2
Price unavailable
29
Required: 1
. GRAPHIC 4
Price unavailable
30
Required: 1
GRAPHIC 5
Price unavailable
31
Required: 1
GRAPHIC 6
Price unavailable
32
Required: 1
GRAPHIC 7
Price unavailable
