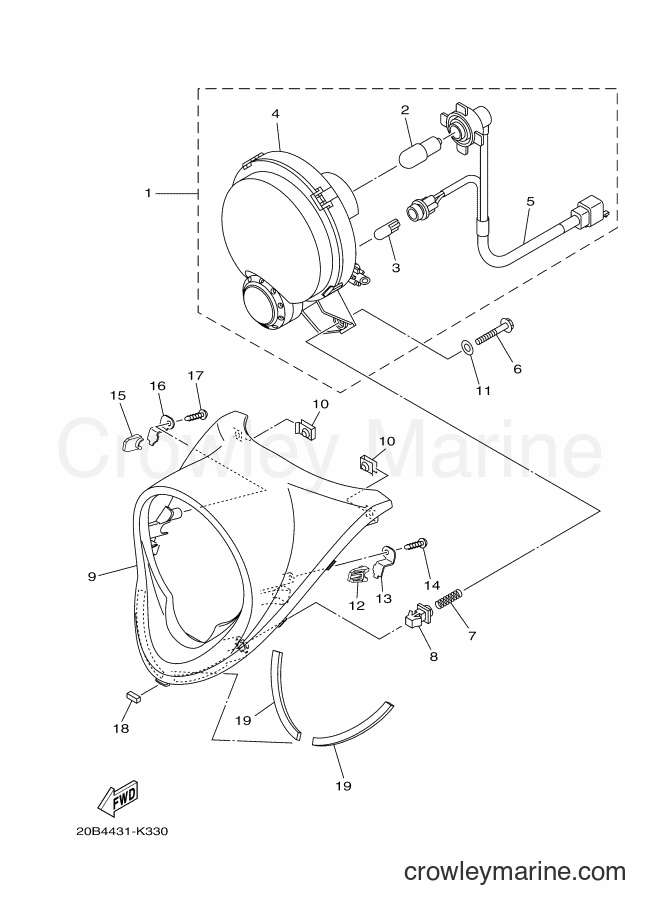

2012 Scooter AF115S - AF115S (20B8) [010] HEADLIGHT diagram
![Yamaha Motors AF115S (20B8) [010] - HEADLIGHT](https://cdn.crowleymarine.com/yamaha/fUooZa26.png)
1
Required: 1
HEADLIGHT UNIT ASSY
Price unavailable
2
Required: 1
. BULB (12V-32/32W)
Price unavailable
3
Required: 1
. BULB (12V-3.4W)
Price unavailable
4
Required: 1
. HEADLIGHT UNIT ASSY
Price unavailable
5
Required: 1
. CORD ASSY
Price unavailable
6
Required: 1
SCREW, RIM ADJUSTING
Price unavailable
7
Required: 1
SPRING, SCREW
Price unavailable
8
Required: 1
NUT, ADJUSTING
Price unavailable
9
Required: 1
COVER, HEADLIGHT (1217,BMH)
Price unavailable
9
Required: 1
COVER, HEADLIGHT (1124,WM6)
Price unavailable
9
Required: 1
COVER, HEADLIGHT (CR)
Price unavailable
10
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
11
Required: 1
PLATE, RUBBER 1
Price unavailable
12
Required: 1
HOLDER, 1
Price unavailable
13
Required: 1
BRACKET 1
Price unavailable
14
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 1
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
15
Required: 1
HOLDER, 2
Price unavailable
16
Required: 1
BRACKET 2
Price unavailable
17
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 1
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
18
Required: 1
DAMPER
Price unavailable
19
Required: 2
DAMPER
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
