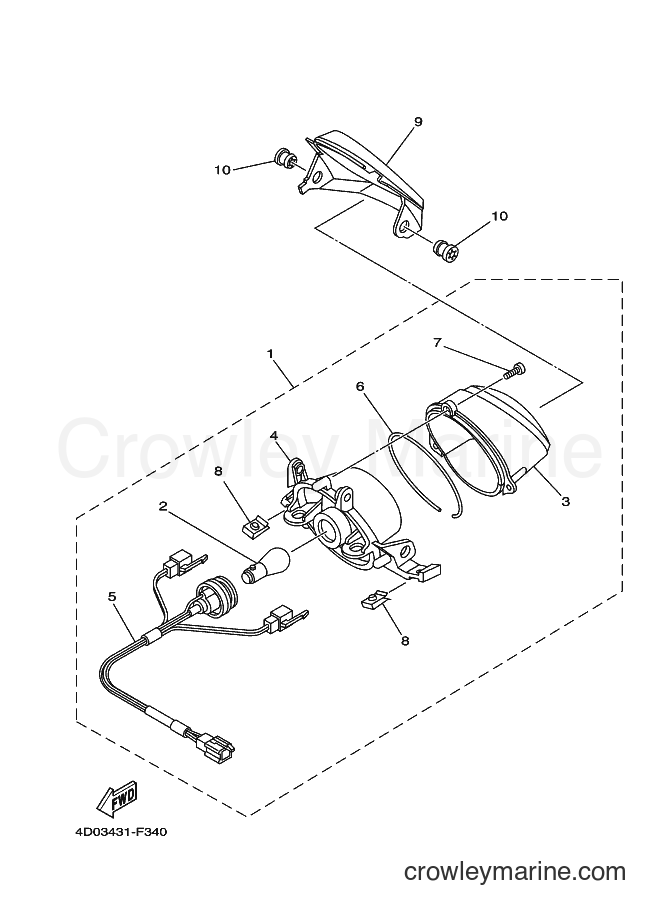

2012 Scooter AF115S - AF115S (20B9) [010] TAILLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AF115S (20B9) [010] - TAILLIGHT
Change View:
1
Required: 1
TAILLIGHT UNIT ASSY
Price unavailable
2
Required: 1
. BULB (12V-21/5W)
Price unavailable
3
Required: 1
. LENS, TAILLIGHT
Price unavailable
4
Required: 1
. BASE, TAILLIGHT
Price unavailable
5
Required: 1
. SOCKET CORD ASSY
Price unavailable
6
Required: 1
. GASKET, TAIL LENS
Price unavailable
7
Required: 3
. SCREW, TAPPING
Price unavailable
9
Required: 1
RIM, TAILLIGHT
Price unavailable
10
Required: 2
GROMMET
Price unavailable
